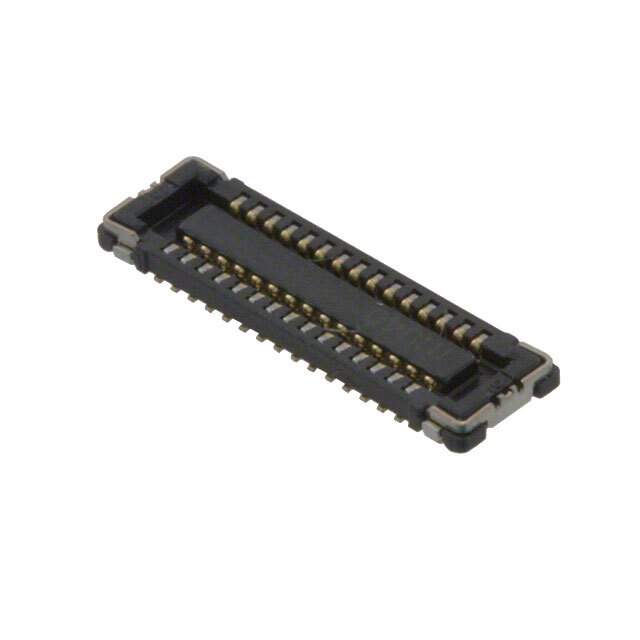

WP7A-S030VA1-R500

Part No WP7A-S030VA1-R500
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 0.4MM 30POS DUAL SMD
Datasheet
WP7A-S030VA1-R500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series WP7
Packaging Reel package
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 0.7mm
Height Above Board 0.028" (0.71mm)
Win Source Part Number 799340-WP7A-S030VA1-R500
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian WP7A-S030VA1-R500 CAD Model

Description

JAE Electronics WP7A-S030VA1-R500 is a 30-position receptacle connector that is designed to be mounted using surface mount technology (SMT).

  • Pitch: 0.016 inches (0.40mm)
  • Features: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Mated Stacking Height: 0.7mm
  • Height Above Board: 0.028 inches (0.71mm)
  • Applications: Connectors and Interconnects
  • Packaging: Reel
  • Quantity Per Package: 500 pieces
