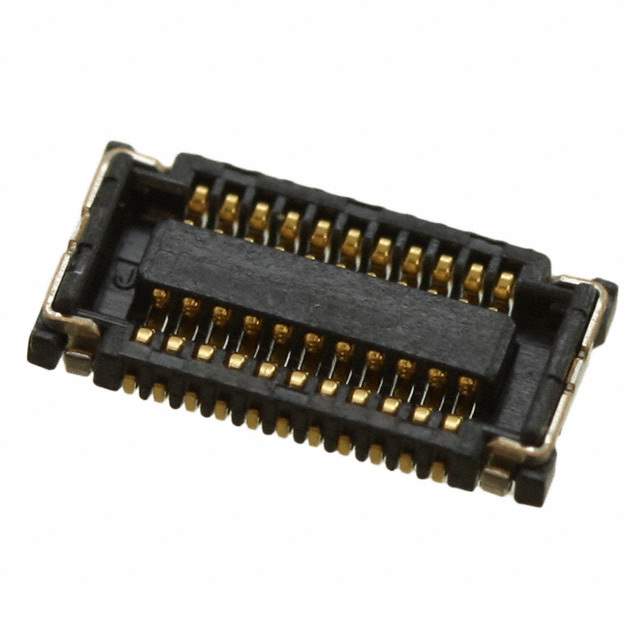

WP3-S022VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP3-S022VA1-R6000

Part No WP3-S022VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 0.4MM 22POS DUAL SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 1mm
Height Above Board 0.039" (1.00mm)
Win Source Part Number 1011487-WP3-S022VA1-R6000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian WP3-S022VA1-R6000 CAD Model

Description

The WP3-S022VA1-R6000 is a connector manufactured by JAE Electronics.

  • Positions: 22
  • Pitch: 0.016" (0.40mm)
  • Contact Type: Receptacle, Center Strip
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Height Above Board: 0.039" (1.00mm)
  • Mounting Technology: SMD (SMT)
  • RoHS Compliant: Yes
  • Popularity: Medium
