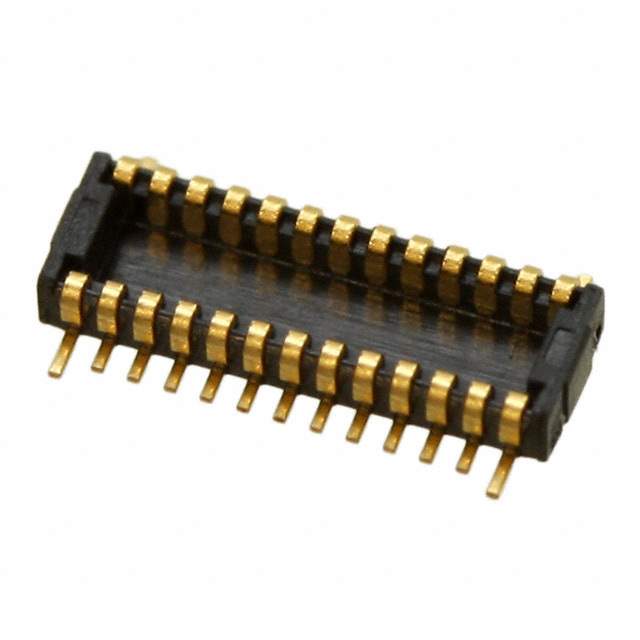

WP3-P022VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP3-P022VA1-R6000

Part No WP3-P022VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP3
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315700-WP3-P022VA1-R6000
Ultra Librarian 3D Model Ultra Librarian WP3-P022VA1-R6000 CAD Model

Description

The WP3-P022VA1-R6000 is a connector array manufactured by JAE Electronics.

  • Series: WP3
  • Positions: 22
  • Pitch: 0.016" (0.40mm)
  • Contacts: Gold-Plated, 4.00μin (0.100μm) thickness
  • Height Above Board: 0.033" (0.84mm)
  • Suitable for: Surface-Mounting
  • Packaging: Tape and Reel
