TX24-80R-6ST-N1E JAE Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

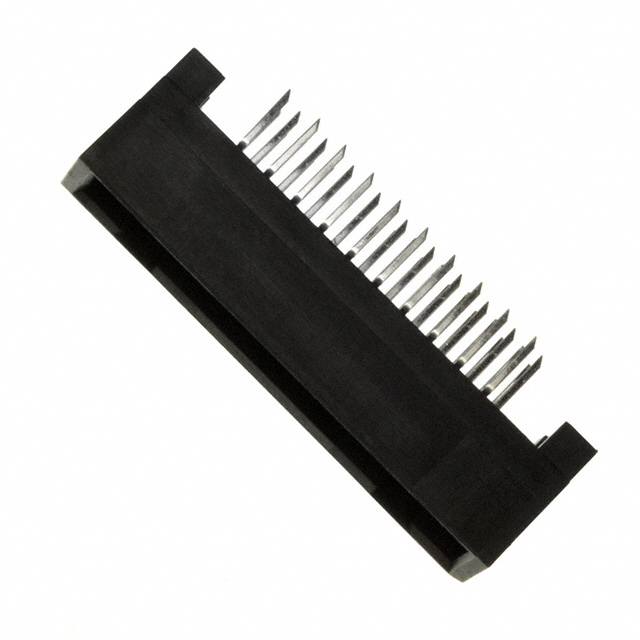

TX24-80R-6ST-N1E

Part No TX24-80R-6ST-N1E
Manufacturer JAE Electronics
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN RCPT 80POS VERT GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 80
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 12mm, 14mm, 18mm
Height Above Board 0.406\
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1614454-TX24-80R-6ST-N1E
Ultra Librarian 3D Model Ultra Librarian TX24-80R-6ST-N1E CAD Model
