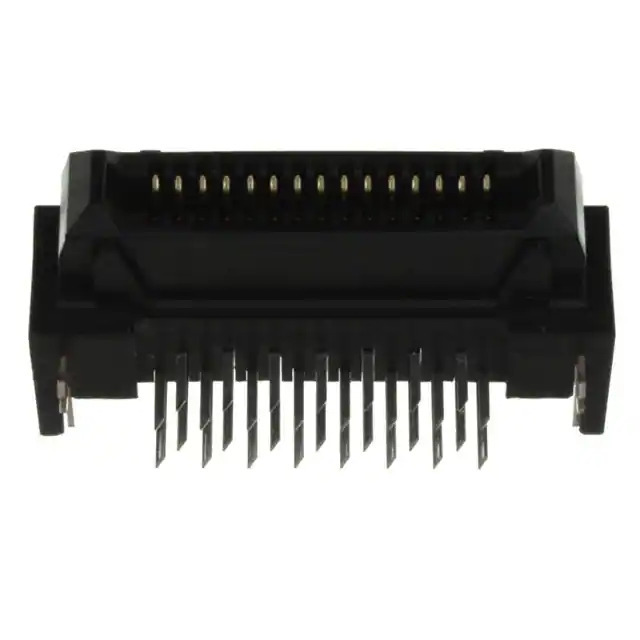

TX24-30R-LT-H1E JAE Electronics
Same model may have multiple batches, images only for reference.

TX24-30R-LT-H1E

Part No TX24-30R-LT-H1E
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 30POS R/A GOLD / 30 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
Datasheet
TX24-30R-LT-H1E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series TX24
Package Tray
Product Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 30
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights -
Height Above Board 0.354" (9.00mm)
Base Product Number TX24-30R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1364494-TX24-30R-LT-H1E
Ultra Librarian 3D Model Ultra Librarian TX24-30R-LT-H1E CAD Model

Description

The TX24-30R-LT-H1E is a rectangular connector array from JAE Electronics.

  • Series: TX24
  • Features: Board Lock
  • Connector Type: Receptacle, Outer Shroud Contacts
  • Number of Positions: 30
  • Number of Rows: 2
  • Pitch: 0.050" (1.27mm)
  • Height Above Board: 0.354" (9.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • HTSUS: 8536.69.4040
  • ECCN: EAR99
  • Product Status: Active
  • Package: Tray
  • Application: Connectors, Interconnects, Mezzanine
