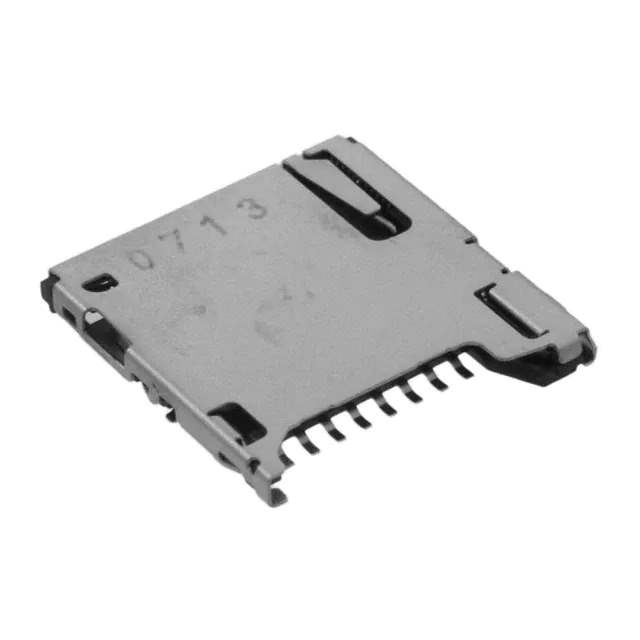

Same model may have multiple batches, images only for reference.

ST9S008V4AR1500

Name: ST9S008V4AR1500
Brand: JAE Electronics
SKU: 849018
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST9S008V4AR1500
Manufacturer	JAE Electronics
Catalog	Memory Connectors - PC Card Sockets
Description	CONN MICRO SD CARD PUSH-PUSH R/A
Datasheet	ST9S008V4AR1500 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr	JAE Electronics
Series	ST9
Package	Tape & Reel
Product Status	Obsolete
Card Type	Secure Digital - microSD™
Number of Positions	10 (8 + 2)
Connector Type	Connector and Ejector
Insertion, Removal Method	Push In, Push Out
Mounting Type	Surface Mount, Right Angle
Features	Switch
Height Above Board	0.057" (1.45mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Base Product Number	ST9S008
Standard Package	1,500 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849018-ST9S008V4AR1500
Ultra Librarian 3D Model	Ultra Librarian ST9S008V4AR1500 CAD Model

Description

The ST9 series from JAE Electronics offers reliable and high-performance connectors for memory cards. The 849018-ST9S008V4AR1500 is a PC card socket designed for secure digital - microSD™ cards.

Series: ST9
Application: PC card socket, secure digital - microSD™ cards
Positions: 10 (8 + 2)
Contact Finish: Gold
Package: Tape and reel
Standard Package: 1,500 pcs
Mounting: Surface mountable
Orientation: Right-angle
Switch Feature: Yes
Height Above Board: 0.057" (1.45mm)
