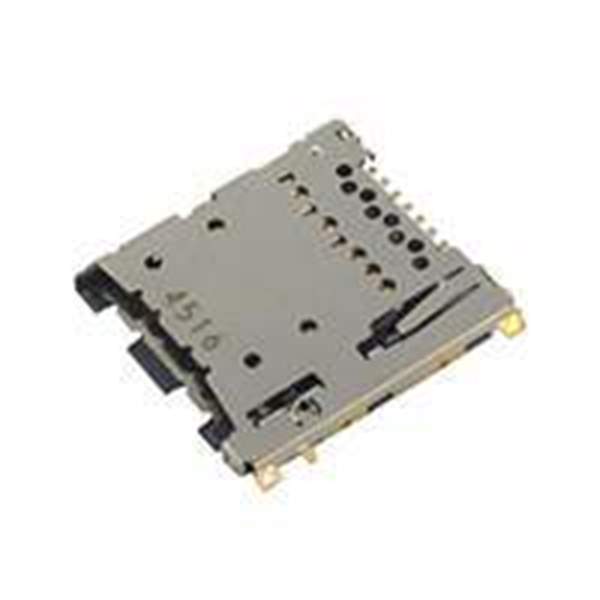

ST12S010VBAR1800 JAE Electronics
Same model may have multiple batches, images only for reference.

ST12S010VBAR1800

Part No ST12S010VBAR1800
Manufacturer JAE Electronics
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD R/A SMD
Datasheet
ST12S010VBAR1800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

  • Push-push type connector for microSD card compliant with UHS-I.
  • 1.4mm height, 14.6mm width, and 15.3mm depth (depth including card: 16.7mm).
  • Good operability with 0.7mm push stroke and 3.8mm card eject length.
  • Card insertion detection switch (normally open).
  • Robust mounting with multiple hold-downs. (*2)
  • Strong mechanical lock structure: Resistant to vibration and shock.
  • Soldering area of terminals are located on the outside of connector body for easy inspection and repair.
