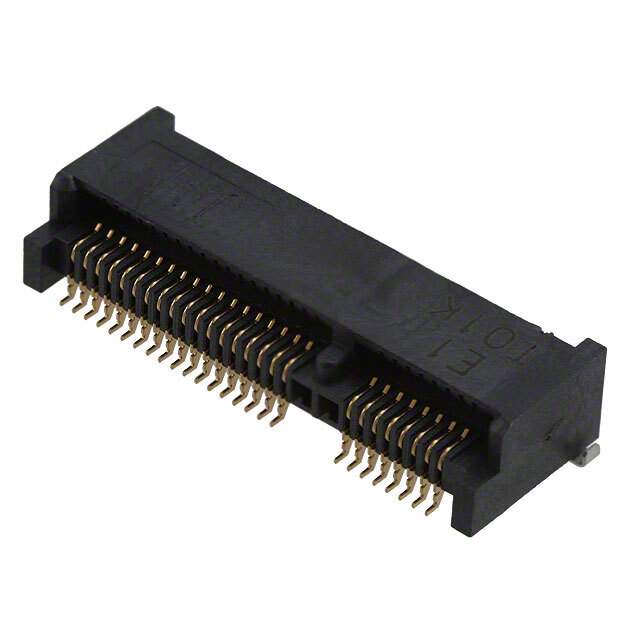

MM60-52C2-R1-R1200 Real Image
Same model may have multiple batches, images only for reference.

MM60-52C2-R1-R1200

Part No MM60-52C2-R1-R1200
Manufacturer JAE Electronics
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MINI FEMALE 52POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JAE Electronics
Packaging Reel
Card Type PCI Express Mini Card
Gender Female
Number of Positions 52
Card Thickness 0.039" (1.00mm)
Number of Rows 2
Pitch 0.80mm
Read Out Dual
Mounting Style Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 3.94μin (0.10μm)
Temperature Range - Operating -40°C ~ 85°C
Material - Insulation Thermoplastic
Manufacturer Pack Quantity 1,200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806213-MM60-52C2-R1-R1200
Ultra Librarian 3D Model Ultra Librarian MM60-52C2-R1-R1200 CAD Model

Description

The MM60-52C2-R1-R1200 connector manufactured by JAE Electronics is a PCI Express Mini Card type connector with a 0.80mm pitch and 52 number of positions.

  • Mounting Style: Surface Mount, Right Angle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 1,200
  • MSL Level: 1 (Unlimited)
