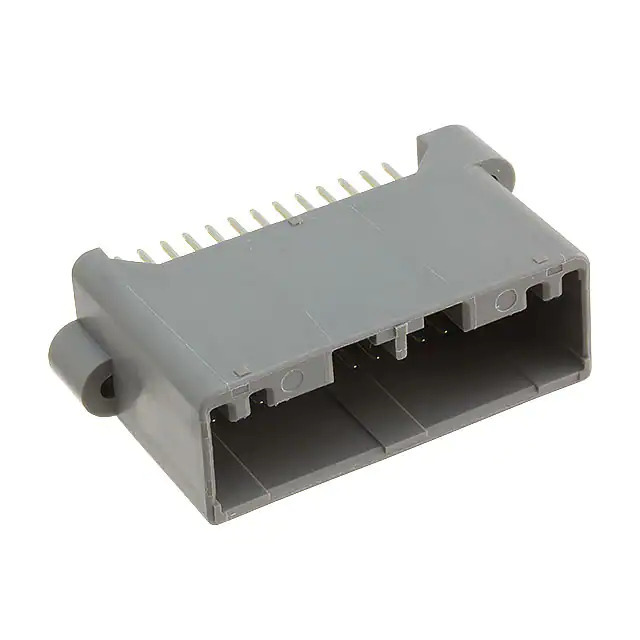

MX34028UF2 JAE Electronics
Same model may have multiple batches, images only for reference.

MX34028UF2

Part No MX34028UF2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER VERT 28POS 2.2MM / Connector Header Through Hole 28 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 28
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length -
Insulation Height 0.925" (23.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection -
Material Flammability Rating -
Insulation Color Gray
Current Rating (Amps) 3A
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number MX34028U
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352872-MX34028UF2
Ultra Librarian 3D Model Ultra Librarian MX34028UF2 CAD Model

Description

The MX34028UF2 is a male pin header connector manufactured by JAE Electronics.

  • Manufacturer: JAE Electronics
  • Connector Type: Header
  • Pin Shape: Square
  • Number of Positions: 28
  • Number of Rows: 2
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Pitch: 0.087" (2.20mm)
  • Row Spacing: 0.118" (3.00mm)
  • Current Rating: 3A
  • Application: Automotive
  • Series: MX34
  • Packaging: Bulk
  • HTSUS: 8536.69.4040
  • ECCN: EAR99
  • Product Status: Active
  • Feature: Mounting Flange
