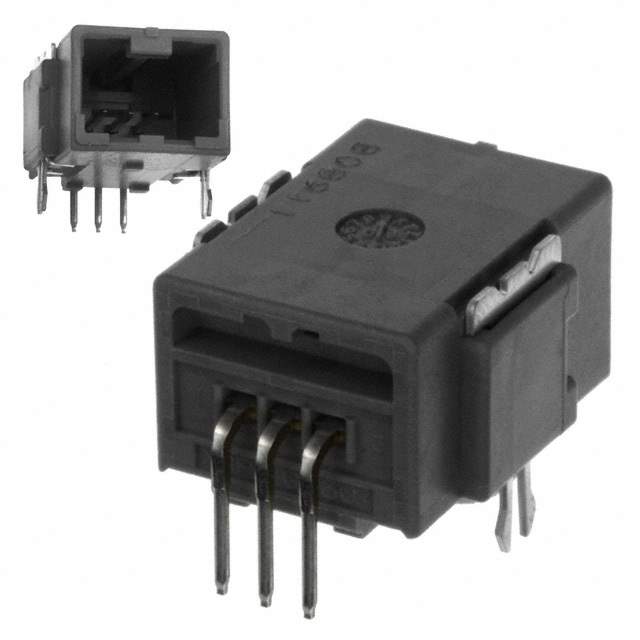

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.421" (10.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34003N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -670-2000-ND,-MX34003NF1,670-2000,-670-2000
Standard Package 2,016
Win Source Part Number 1143113-MX34003NF1
Ultra Librarian 3D Model Ultra Librarian MX34003NF1 CAD Model

Description

The JAE Electronics MX34003NF1 is a 3-position male pin header connector with a locking ramp fastening type.

  • Style: Board to Cable/Wire
  • Pitch: 0.087 inches (2.20mm)
  • Voltage Rating: -
  • Current Rating: 3A
  • Insulation Material: Syndiotactic Polystyrene (SPS), Glass-Filled
  • Insulation Height: 0.421 inches (10.70mm)
  • Mounting Type: Through Hole, Right-Angle
  • Shrouded: 4 Walls
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
