JN6FR07SM1 JAE Electronics
Same model may have multiple batches, images only for reference.

JN6FR07SM1

Part No JN6FR07SM1
Manufacturer JAE Electronics
Catalog Rectangular Connectors

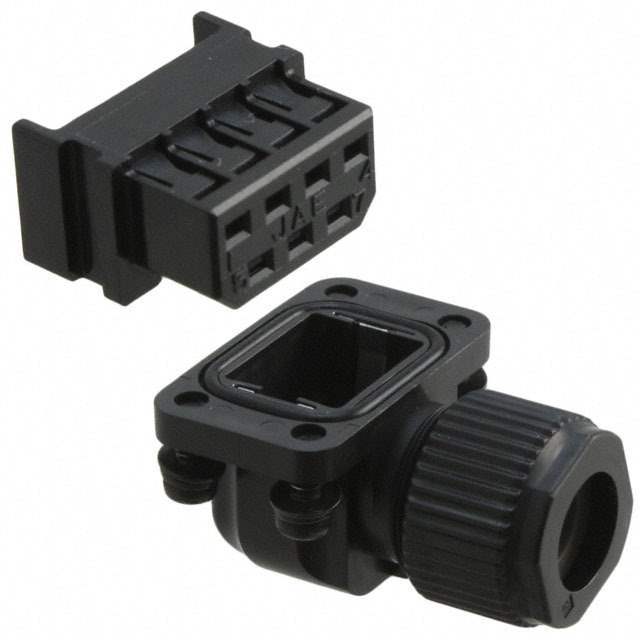

Description CONN PLUG HSG 7POS R/A CRIMP
Datasheet
JN6FR07SM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306512-JN6FR07SM1
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Mfr JAE Electronics
Packaging Bulk
Part Status Active
Connector Type Plug
Contact Type Female Socket
Mounting Type Free Hanging (In-Line), Right Angle
Contact Termination Crimp and Clamp
Color Black
Features Waterproof (Mated, IP67)
Ultra Librarian 3D Model Ultra Librarian JN6FR07SM1 CAD Model

Description

  • All plastic ---lightweight, low cost
  • Compact and low profile
    4 pos.; plug overall length 28mm, plug height 11.4mm
  • Receptacle attachment
    4 pos.; molded in to motor
    2 pos., 7pos.; crimp attached to motor
  • Connection method
    4pos. receptacle; board through-hole type
    4pos. plug and other 2pos., 7pos.; crimp type
  • Secure mating ---enables secure mating by screw fixing 4points
  • Waterproof --- lP67 class
  • Cable exit orientation .selectable from two orientation (180 degrees)
