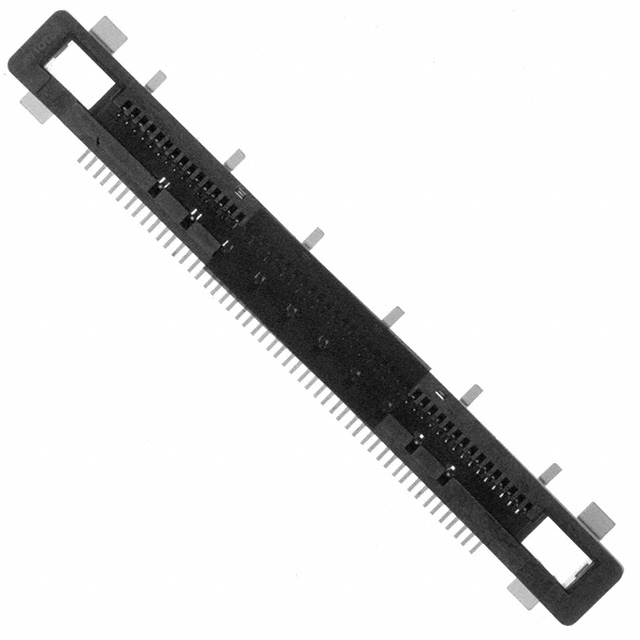

FI-RE51S-VF JAE Electronics
Same model may have multiple batches, images only for reference.

FI-RE51S-VF

Part No FI-RE51S-VF
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description Connector for Internal Serial Transmission | CONN RCPT 51POS 0.02 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Strip
Connector Type Receptacle
Contact Type Female Blade Socket
Style Board to Cable/Wire
Number of Positions 51
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting Style SMD
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Insulation Height 0.183" (4.65mm)
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 10.1mm, 16.1mm
Features Shielded, Solder Retention
Current Rating (Amps) 0.8A per Contact
Applications General Purpose, Medical
Insulation Material Plastic
Contact Material Copper Alloy
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174304-FI-RE51S-VF
Manufacturer Homepage www.jae.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FI-RE51S-VF CAD Model

Description

The FI-RE51S-VF is a shielded, SMD receptacle connector manufactured by JAE Electronics.

  • Manufacturer: JAE Electronics
  • Positions: 51
  • Loaded: All positions
  • Mounting Style: SMD
  • Fastening Type: Latch holder
  • Contact Type: Female blade socket
  • Contact Material: Copper alloy
  • Voltage Rating: Not applicable
  • Mated Stacking Heights: 10.1mm and 16.1mm
  • Material Flammability Rating: UL94 V-0
  • Applications: General purpose and medical
  • Insulation Material: Plastic
  • Style: Board to cable/wire
  • Pitch-Mating: 0.020" (0.50mm)
  • Contact Finish-Mating: Gold
  • Temperature Range: -40°C ~ 80°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 0.8A per contact
