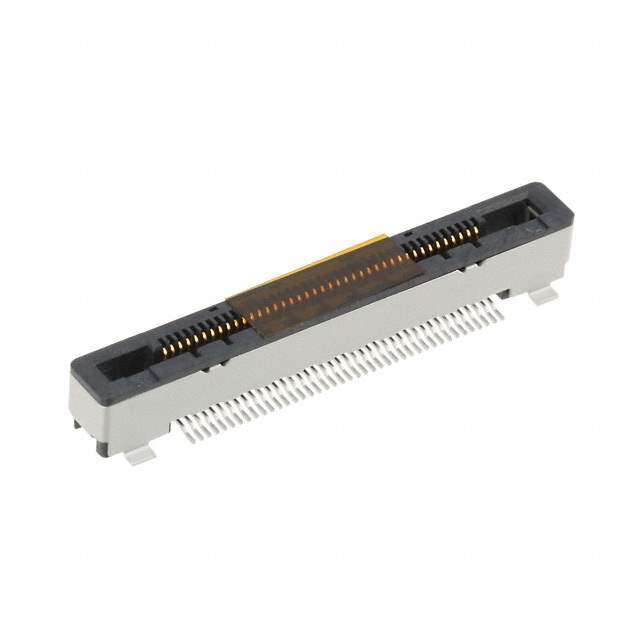

Same model may have multiple batches, images only for reference.

FI-RE41S-VF-R1300

Name: FI-RE41S-VF-R1300
Brand: JAE Electronics
SKU: 774581
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FI-RE41S-VF-R1300
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 0.5MM 41 POS / Conn High Speed Fine Pitch Connector RCP 41 POS 0.5mm Solder ST SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JAE Electronics
Series	FI-R
Packaging	Reel package
Connector Type	Receptacle
Contact Type	Female Blade Socket
Style	Board to Cable/Wire
Number of Positions	41
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Insulation Height	0.183" (4.65mm)
Operating Temperature Range	-40°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	10.1mm, 16.1mm
Features	Shielded, Solder Retention
Current Rating	0.8A per Contact
Applications	General Purpose, Medical
Insulation Material	Plastic
Contact Material	Copper Alloy
Win Source Part Number	774581-FI-RE41S-VF-R1300
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1,300
Family Name	FI
Introduction Date	December 25, 2008
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FI-RE41S-VF-R1300 CAD Model

Alternative Products

Description

The FI-RE41S-VF-R1300 from JAE Electronics is a shielded, solder retention connector designed for general purpose and medical applications.

Connector Type: receptacle
Positions: 41
Pitch: 0.020 inches (0.50mm)
Mounting: SMD
Fastening Type: latch holder
Contact Finish (Mating): gold
Contact Finish (Post): tin
Series: FI-R
Material Flammability Rating: UL94 V-0
Package Type: reel
ECCN: EAR99
Estimated EOL Date: 2027
