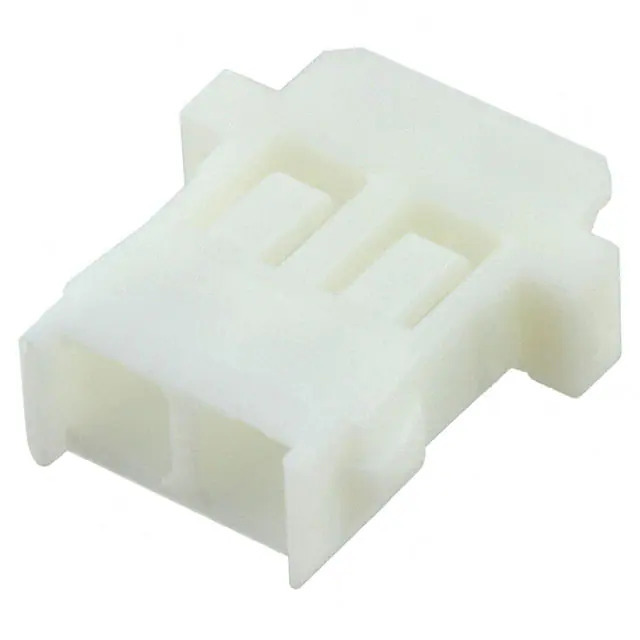

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series ES9
Package Bulk
Product Status Active
Connector Type Socket
Contact Type Female Blade Socket
Number of Positions 2
Pitch 0.118" (3.00mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Spring Lock
Color White
Features -
Temperature Range - Operating -40°C ~ 105°C
Note Contacts Not Included
Base Product Number ES9S002S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365962-ES9S002SZA
Ultra Librarian 3D Model Ultra Librarian ES9S002SZA CAD Model

Description

The JAE Electronics ES9 series socket connector is a versatile and reliable component for free hanging and in-line mounting applications.

  • Mounting: Free hanging and in-line
  • Contact Termination: Crimp
  • Pitch: 0.118" (3.00mm)
  • Positions: 2
  • Contacts: Female Blade Socket
  • Color: White
  • Fastening Type: Spring Lock
  • MSL Level: Level 1
  • Shelf Life: Unlimited
  • ECCN: Compliant
  • California Prop 65: Meets requirements
