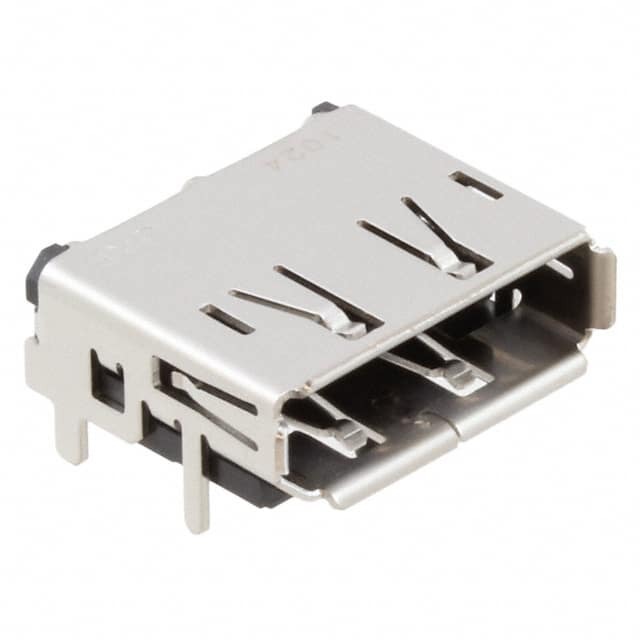

DP1RD20JQ1R400
Same model may have multiple batches, images only for reference.

DP1RD20JQ1R400

Part No DP1RD20JQ1R400
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors
Description CONN RCP 1.1A DISPLAYPORT SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JAE Electronics
Series DP1
Package Tape & Reel
Product Status Not For New Designs
Connector Type DisplayPort
Number of Contacts 20
Gender Receptacle
Specifications Display Port 1.1a
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A per Contact
Mating Cycles 10000
Shielding Unshielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number DP1RD20J
Standard Package 400 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848349-DP1RD20JQ1R400
Ultra Librarian 3D Model Ultra Librarian DP1RD20JQ1R400 CAD Model

Description

The DP1RD20JQ1R400 is a DisplayPort connector assembly from JAE Electronics.

  • Connector Type: Receptacle
  • Contacts: 20
  • Mounting: Surface Mount, Right Angle
  • Package: Tape & Reel
  • Current Rating: 0.5A per Contact
  • Compliance: DisplayPort 1.1a
  • Flammability Rating: UL94 V-0
  • Application: High-Speed Digital Video and Audio Transmission
  • Mating Cycle Durability: 10,000 Cycles
  • Operating Temperature: -20°C to 85°C
