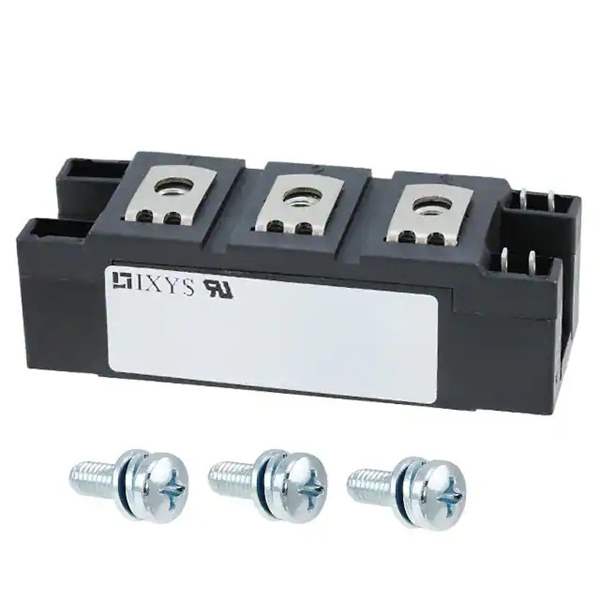

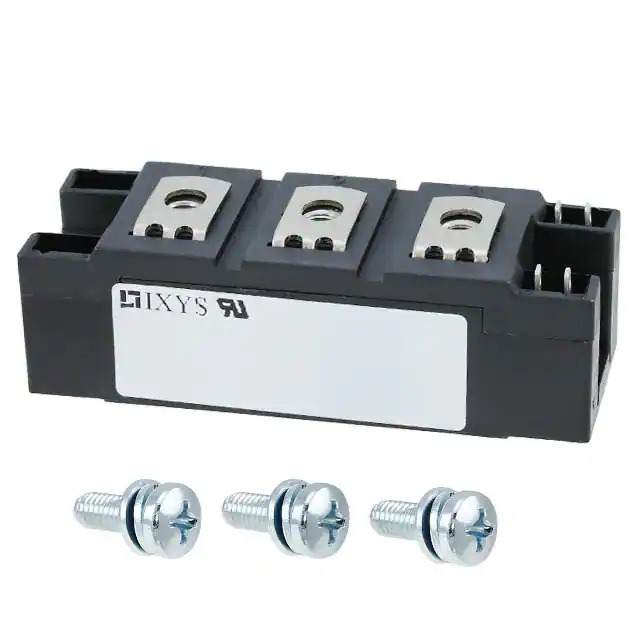

MCD200-16IO1 IXYS
Same model may have multiple batches, images only for reference.

MCD200-16IO1

Part No MCD200-16IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description MOD THYRISTOR/DIODE 1600V Y4-M6 / SCR Module 1.6 kV 340 A Series Connection - SCR/Diode Chassis Mount Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Series -
Package Box
Product Status Active
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 216 A
Current - On State (It (RMS)) (Max) 340 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8000A, 8600A
Current - Hold (Ih) (Max) 150 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Y4-M6
Base Product Number MCD200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1355059-MCD200-16IO1
Ultra Librarian 3D Model Ultra Librarian MCD200-16IO1 CAD Model

Description

The MCD200-16IO1 is a thyristor SCR module manufactured by IXYS. IXYS

  • Packaging: Box
  • Temperature Range: -40°C ~ 125°C
  • Voltage - Off State: 1.6 kV
  • Current - On State (It (RMS)) (Max): 340 A
  • Voltage - Gate Trigger (Vgt) (Max): 2 V
  • Current - Gate Trigger (Igt) (Max): 150 mA
  • Mounting Type: Chassis Mount
