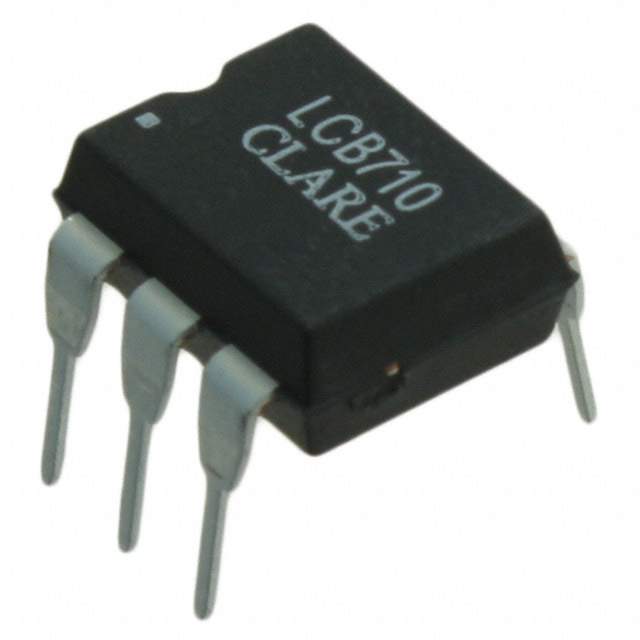

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Tube
Mounting Style Through Hole
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 60V
Load Current 500mA
On-State Resistance (Maximum) 2 Ohms
Termination Style PC Pin
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1195691-LCB716
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCB716 CAD Model

Description

The IXYS LCB716 is a relay manufactured by IXYS.

  • Circuit: SPST-NC (1 Form B)
  • Load Current: 500mA
  • Termination: PC Pin
  • Mounting: Through-Hole
  • Output Type: AC, DC
  • Load Voltage: 0V to 60V
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • On-State Resistance (Maximum): 2 Ohms
  • Supplier Device Package: 6-DIP
  • Manufacturer Package: 6-DIP
