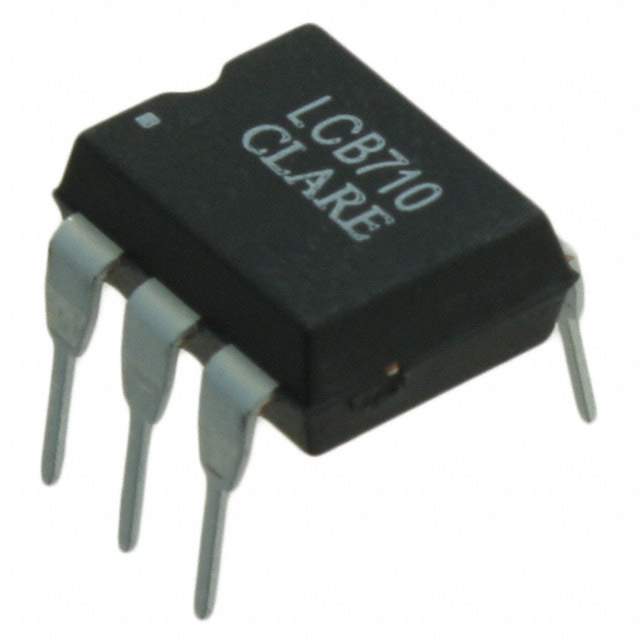

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Tube
Mounting Style Through Hole
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 250V
Load Current 170mA
On-State Resistance (Maximum) 15 Ohms
Termination Style PC Pin
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1195686-LCB126
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LCB126 CAD Model

Description

The IXYS relay is a high-quality electronic component designed for a wide range of applications.

  • Load Current: 170mA
  • Load Voltage: 0V to 250V
  • Output Type: AC and DC
  • Circuit: SPST-NC (1 Form B)
  • Termination Style: PC Pin
  • On-State Resistance: 15 Ohms (maximum)
  • Mounting: Through Hole
  • Supplier Device Package: 6-DIP
  • Manufacturer: Clare
  • Manufacturer Package: 6-DIP
  • MSL Level: 1 (unlimited)
  • Manufacturer Pack Quantity: 50
