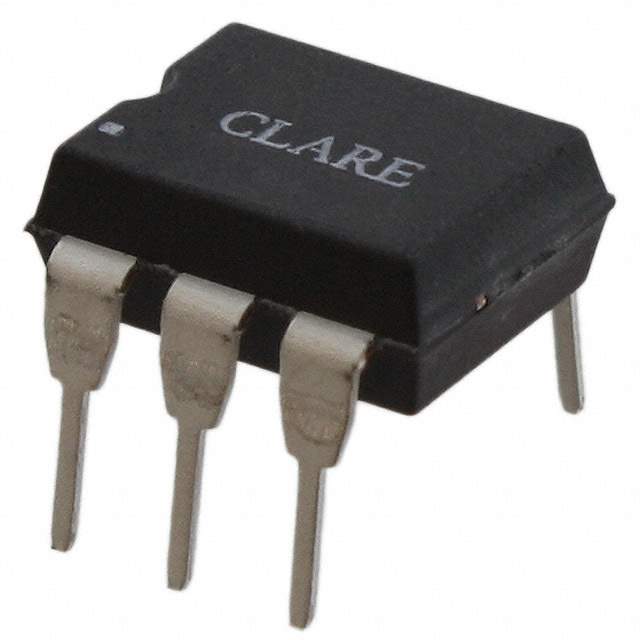

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Tube
Mounting Style Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 100V
Load Current 1.5A
On-State Resistance (Maximum) 300 mOhms
Termination Style PC Pin
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1195672-LCA701
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LCA701 CAD Model

Description

The IXYS LCA701 is a 6-DIP packaged relay with a load current of 1.5A. The IXYS LCA701 is in the Relays category and has a medium popularity.

  • Package: 6-DIP
  • Load Current: 1.5A
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance: 300 mOhms
  • Output Type: AC, DC
  • Load Voltage: 0V ~ 100V
  • Input Voltage: 1.2VDC
  • Popularity: Medium
  • Manufacturer Homepage: www.ixys.com
