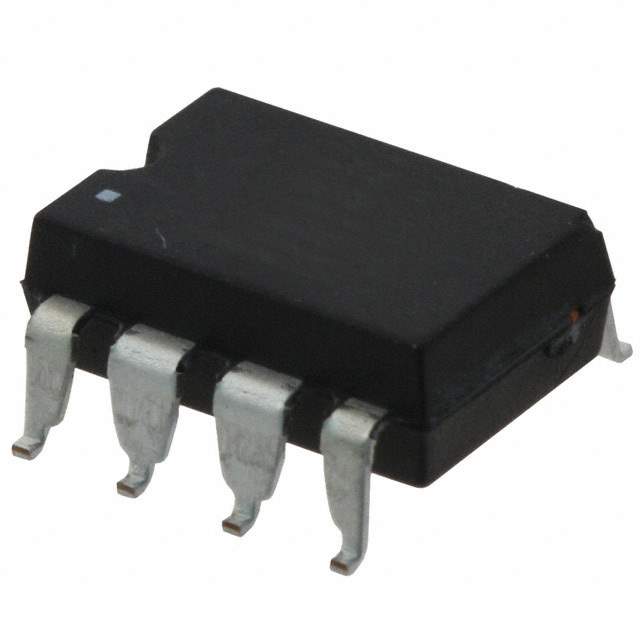

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Reel - TR
Status Active
Circuit DPST (2 Form B)
Output Type AC, DC
Max On Resistance 15 Ohm
Load Current 170mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 250 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 002321-LBB126STR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LBB126STR CAD Model

Description

The IXYS 002321-LBB126STR relay is a DPST (2 Form B) relay that operates on a voltage input of 1.2VDC and has a load current of 170mA.

  • Voltage input: 1.2VDC
  • Load current: 170mA
  • Maximum on resistance: 15 Ohm
  • Voltage load range: 0 to 250V
  • Package: reel - TR
  • Termination style: gull wing
  • Mountable using: SMD (SMT) technology
