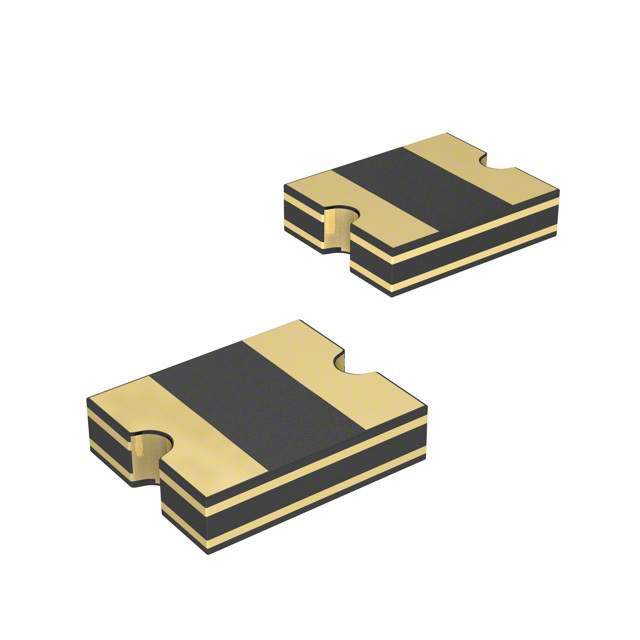

Same model may have multiple batches, images only for reference.
MF-USMF020-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-USMF020-2

Part No MF-USMF020-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 30V 10A 0.6W 0.02s 0.4Ohm SMD Solder Pad 1210 T/R Automotive / FUSE RESETTABLE .20A 30V HLD SMD
Datasheet
MF-USMF020-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 400 mOhm
Resistance - Post Trip (R1) (Max) 5 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003463-MF-USMF020-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, Multimedia, Automotive
Family Name MF-USMF
Introduction Date May 11, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-USMF020-2 CAD Model

Description

The Bourns Inc. MF-USMF020-2 is a polymeric type circuit protection component.

  • Type: Polymeric
  • Voltage Rating: 30V
  • Maximum Current Rating: 10A
  • Thickness: 0.033 inches (0.85mm)
  • Dimension: 0.127 inches L x 0.102 inches W (3.22mm x 2.58mm)
  • Approval: AEC-Q200
  • Suitable Applications: Consumer electronics, computers and computer peripherals, communications and networking, imaging, video and vision, and automotive
  • Mounting: SMD (SMT) technology
  • Time to Trip: 20ms
  • Initial Resistance: 400 mOhm
  • Post-Trip Resistance: 5 Ohm
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
