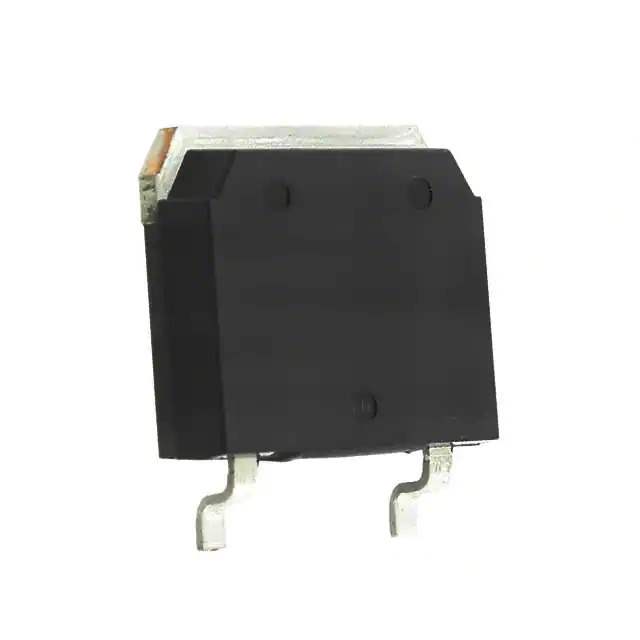

IXGT24N170AH1

Name: IXGT24N170AH1
Brand: IXYS
SKU: 876112
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXGT24N170AH1
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1700V 24A 250W TO268
Datasheet	IXGT24N170AH1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	IXYS
Package	Tube
Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1700 V
Current - Collector (Ic) (Max)	24 A
Current - Collector Pulsed (Icm)	75 A
Vce(on) (Max) @ Vge, Ic	6V @ 15V, 16A
Power - Max	250 W
Switching Energy	2.97mJ (on), 790µJ (off)
Input Type	Standard
Gate Charge	140 nC
Td (on/off) @ 25°C	21ns/336ns
Test Condition	850V, 24A, 10Ohm, 15V
Reverse Recovery Time (trr)	200 ns
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
Base Product Number	IXGT24
Standard Package	300 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	876112-IXGT24N170AH1
Ultra Librarian 3D Model	Ultra Librarian IXGT24N170AH1 CAD Model

Description

The IGBT with the part number 876112-IXGT24N170AH1 is a single IGBT designed for high power applications.

Maximum Collector-Emitter Breakdown Voltage (Vce): 1700V
Maximum Collector Current (Ic): 24A
Reverse Recovery Time (trr): 200ns
Gate Charge: 140nC
Switching Energy (on): 2.97mJ
Switching Energy (off): 790μJ
Mounting: surface mount
Package: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA package
Package Quantity: 300 pcs
Operating Temperature Range: -55°C to 150°C
Manufacturer: IXYS
Status: obsolete
