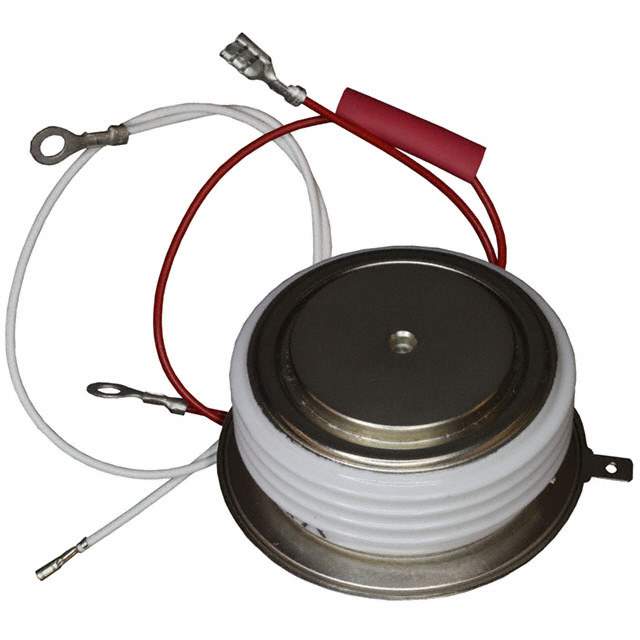

VS-ST730C16L0L Real Image
Same model may have multiple batches, images only for reference.

VS-ST730C16L0L

Part No VS-ST730C16L0L
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1600V 2000A B-PUK / SCR Diode 1600V 2000A(RMS) 18700A 3-Pin TO-200AC
Datasheet
VS-ST730C16L0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 1600V
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 200mA
Voltage - On State (Vtm) (Maximum) 1.62V
Current - On State (It (AV)) (Maximum) 990A
Current - On State (It (RMS)) (Maximum) 2000A
Current - Hold (Ih) (Maximum) 600mA
Current - Off State (Maximum) 80mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 15000A, 15700A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Chassis Mount
Package TO-200AC, B-PUK
Manufacturer Package TO-200AC, B-PUK
Win Source Part Number 795553-VS-ST730C16L0L
Popularity Medium
Supply and Demand Status Limited
Family Name VS-ST730C16
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-ST730C16L0L CAD Model

Description

The VS-ST730C16L0L from Vishay Semiconductor Diodes Division is a discrete semiconductor product.

  • Voltage Off State: 1600V
  • Non-Repetitive Surge Current: 15000A @ 50Hz, 15700A @ 60Hz
  • Package: TO-200AC, B-PUK
  • Maximum On-State Current: 2000A
  • Estimated EOL Date: 2027
