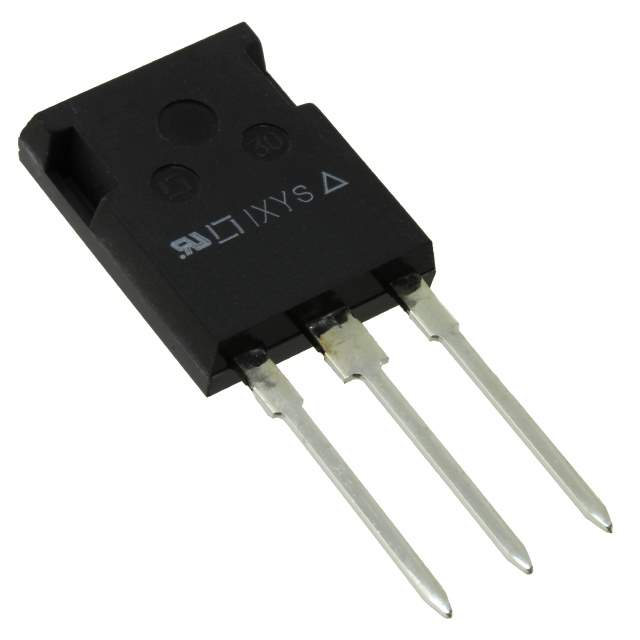

IXGR40N60C2D1 Real Image
Same model may have multiple batches, images only for reference.

IXGR40N60C2D1

Part No IXGR40N60C2D1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 56A 170W ISOPLUS247
Datasheet
IXGR40N60C2D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Obsolete(EOL)
IGBT Type PT
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 56A
Pulsed Collector Current 200A
Collector-emitter saturation voltage(Max) 2.7V @ 15V, 30A
Maximum Power Dissipation 170W
Total Switching Energy(Ets) 200μJ (off)
Input Type Standard
Gate Charge 95nC
Turn-on and Turn-off delay time 18ns/90ns
Testing Conditions 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) 25ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package ISOPLUS247
Win Source Part Number 1049675-IXGR40N60C2D1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXGR40N60C2D1 CAD Model

Description

The IXYS 1049675-IXGR40N60C2D1 is a PT IGBT electronic component with a collector-emitter breakdown voltage of 600V and a maximum current collector of 56A.

  • Manufacturer: IXYS
  • Component Type: PT IGBT
  • Collector-Emitter Breakdown Voltage: 600V
  • Maximum Current Collector: 56A
  • Maximum Power Dissipation: 170W
  • Pulsed Collector Current: 200A
  • Collector-Emitter Saturation Voltage (Max): 2.7V @ 15V, 30A
  • Total Switching Energy (Ets): 200μJ (off)
  • Turn-On Delay Time: 18ns
  • Turn-Off Delay Time: 90ns
  • Reverse Recovery Time (trr): 25ns
  • Gate Charge: 95nC
  • Case/Package: ISOPLUS247
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Popularity: Medium
  • Status: Obsolete (EOL)
