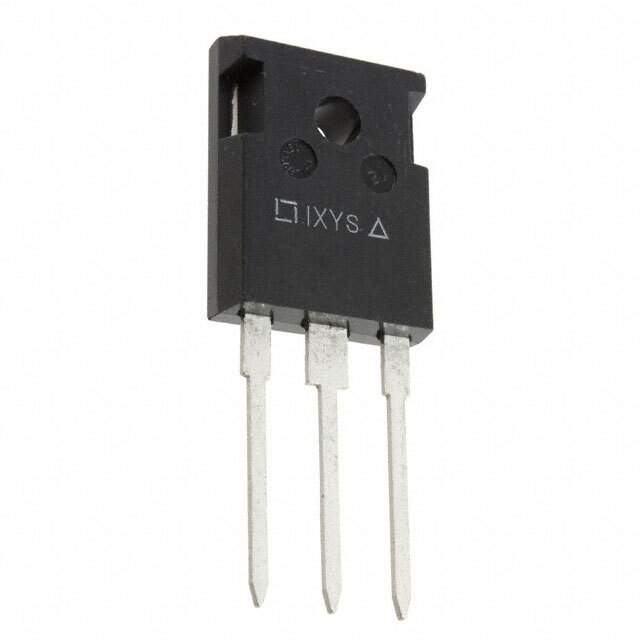

IXDH20N120D1 Real Image
Same model may have multiple batches, images only for reference.

IXDH20N120D1

Part No IXDH20N120D1
Manufacturer IXYS
Catalog IGBTs - Single
Description High Voltage IGBT with optional Diode
Datasheet
IXDH20N120D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 38A
Current - Collector Pulsed (Icm) 50A
Vce(on) (Maximum) @ Vge, Ic 3V @ 15V, 20A
Power - Max 200W
Switching Energy 3.1mJ (on), 2.4mJ (off)
Input Type Standard
Gate Charge 70nC
Test Condition 600V, 20A, 82 Ohm, 15V
Reverse Recovery Time (trr) 40ns
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-247AD
Win Source Part Number 1190970-IXDH20N120D1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXDH20N120D1
Introduction Date October 21, 2000
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian IXDH20N120D1 CAD Model

Description

The IXDH20N120D1 is an NPT IGBT type manufactured by IXYS.

  • Manufacturer: IXYS
  • Type: NPT IGBT
  • Maximum Power: 200W
  • Reverse Recovery Time: 40ns
  • Package: TO-3P-3 full pack
  • Maximum Collector Current: 38A
  • Gate Charge: 70nC
  • Voltage: 1200V
  • Operating Temperature Range: -55°C to 150°C
