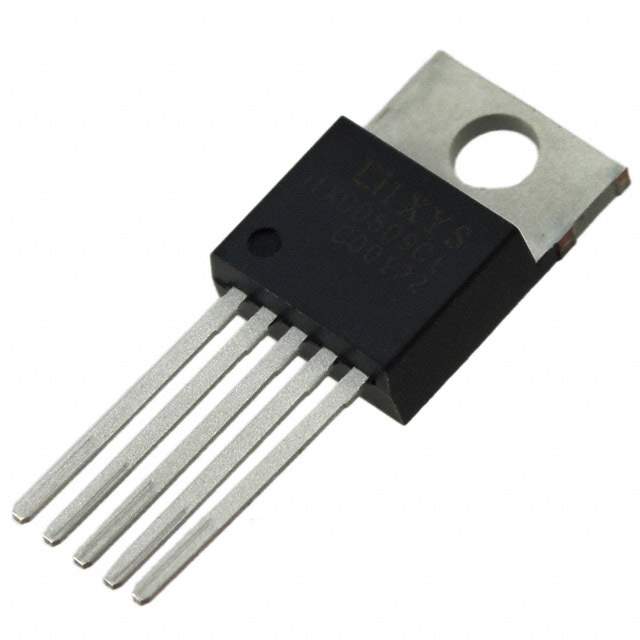

IXDD630CI Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr IXYS Integrated Circuits Division
Package Tube
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply 12.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3.5V
Current - Peak Output (Source, Sink) 30A, 30A
Input Type Non-Inverting
Rise / Fall Time (Typ) 11ns, 11ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-5
Supplier Device Package TO-220-5
Base Product Number IXDD630
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 50
Win Source Part Number 1066167-IXDD630CI
Ultra Librarian 3D Model Ultra Librarian IXDD630CI CAD Model

Description

The IXYS IXDD630CI is a PMIC gate driver integrated circuit that is used in gate drivers for IGBT, N-Channel, P-Channel MOSFET transistors.

  • Voltage Supply Range: 12.5V to 35V
  • Peak Output Current: 30A, 30A
  • Rise/Fall Time: 11ns
  • Operating Temperature Range: -55°C to 150°C
  • Mounting Technology: Through hole
  • Package: TO-220-5 package
  • Supply and Demand Status: Limited
