Products specifications

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 25V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 480mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 40mA @ 25V
Operating Temperature - Junction -55°C to 150°C
Mounting Through Hole

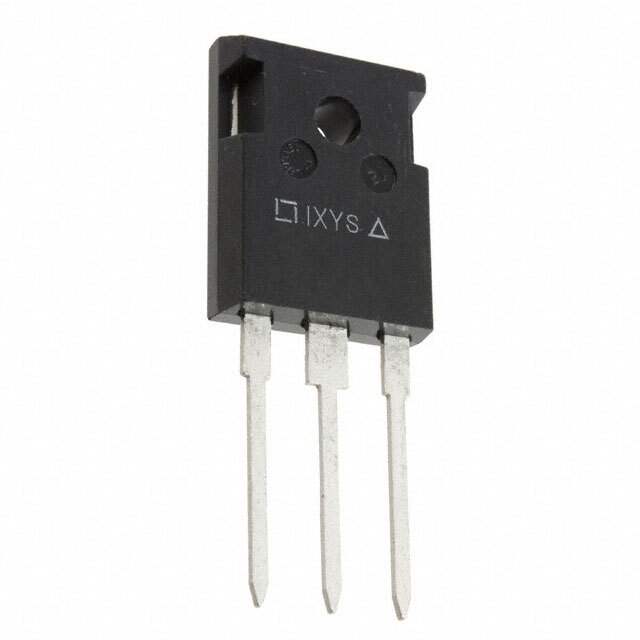

Case / Package TO-247AD
Win Source Part Number 203490-DSSK80-0025B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSSK80-0025B CAD Model

Description

Product Description

The DSSK80-0025B is an advanced component designed for a wide range of electronic applications. Its robust construction and precision engineering make it a reliable choice for both industrial and consumer electronics.

Features and Benefits

  • High performance and reliability
  • Compact design for easy integration
  • Efficient energy consumption
  • Durable materials that ensure longevity

Applications

  • Power supplies
  • Motor control systems
  • Consumer electronics projects
  • Robotics

Additional details include excellent thermal stability and compatibility with other electronic components, making it a versatile choice for engineers and hobbyists alike.
