Same model may have multiple batches, images only for reference.

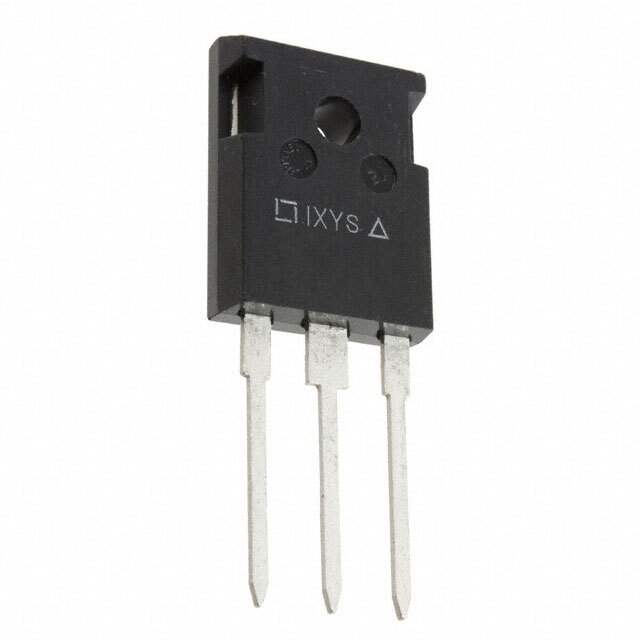

DSSK60-015A Real Image
Same model may have multiple batches, images only for reference.

DSSK60-015A

Part No DSSK60-015A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 150V TO247
Datasheet
DSSK60-015A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 810mV @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 150V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 050982-DSSK60-015A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSSK60-015A CAD Model

Description

DSSK60-015A Rectifier Module

The DSSK60-015A rectifier module is engineered for applications requiring medium power rectification. This module provides excellent thermal and electrical performance.

  • Stable Performance: Offers consistent performance and ensures reliability in circuit applications.
  • Thermal Management: Effective thermal resistance ensures safety and durability in high-power conditions.
  • Easy Mounting: Features a standardized design for straightforward installation and replacement.

Applications

  • DC Motor Drives
  • Switch Mode Power Supplies
  • Uninterruptible Power Supplies (UPS)

Benefits: Provides a reliable rectification solution with enhanced durability and reduced downtime in critical systems.
