Same model may have multiple batches, images only for reference.

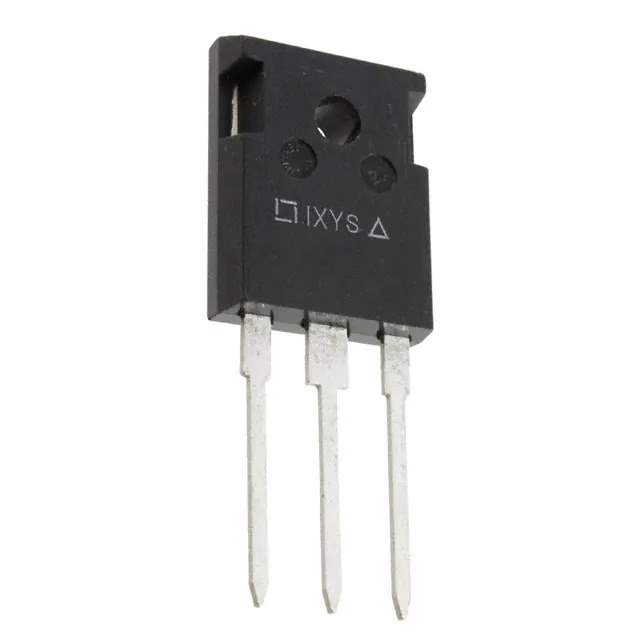

DSSK40-008B Real Image
Same model may have multiple batches, images only for reference.

DSSK40-008B

Part No DSSK40-008B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 80V TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Package Tube
Product Status Discontinued
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 580 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 mA @ 80 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number DSSK40
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 587315-DSSK40-008B
Ultra Librarian 3D Model Ultra Librarian DSSK40-008B CAD Model

Description

The DSSK40-008B is a diode array designed for rectification applications manufactured by IXYS.

  • Recovery: Fast
  • Reverse Recovery Time: Less than 500 ns
  • Voltage Rating: 80 V
  • Average Rectified Currents: 20A
  • Voltage Forward Drop: 580 mV @ 20 A
  • Mounting: Through-hole
  • Package: TO-247-3
  • Status: Discontinued
