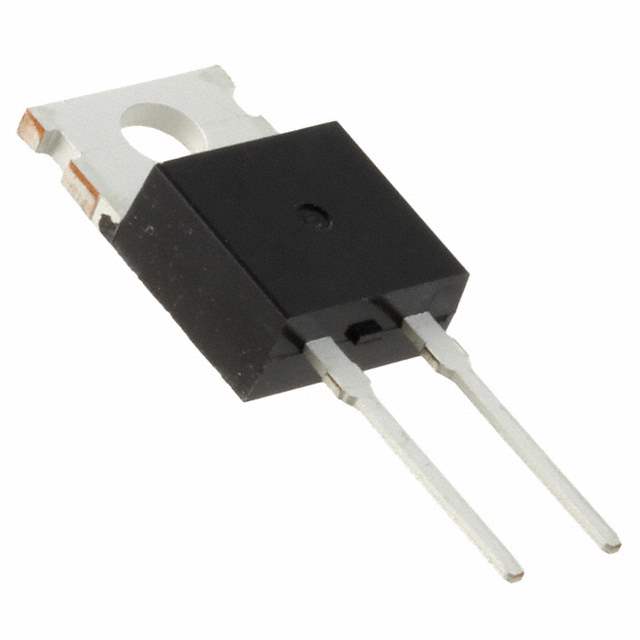

DSS20-0015B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 450mV @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10mA @ 15V
Mounting Through Hole
Case / Package TO-220AC
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 203483-DSS20-0015B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSS20-0015B CAD Model

Description

DSS20-0015B: High-Current Schottky Diode

The DSS20-0015B is a high-current Schottky diode optimized for applications demanding fast switching and low forward voltage drop. Its superior design ensures longevity and efficiency in real-world applications.

  • Applications & Projects:
    • Solar panel systems
    • Inverter circuits
    • Portable electronics
    • Automotive power management
  • Features & Benefits:
    • Low forward voltage for increased efficiency
    • High-frequency response
    • Reduced power dissipation
    • Enhanced heat tolerance
  • Additional Details:
    • Reverse voltage rating: 15V
    • Continuous forward current: 20A
    • Environmentally friendly compliance
    • SMD package for modern circuit designs
