Same model may have multiple batches, images only for reference.

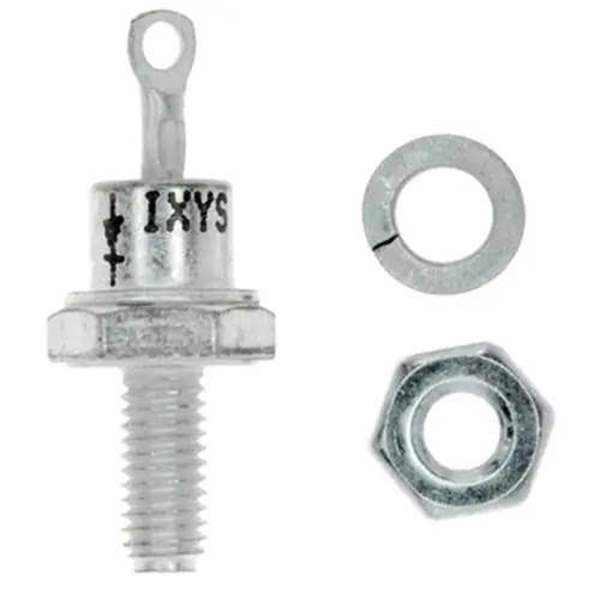

DSAI17-16A Real Image
Same model may have multiple batches, images only for reference.

DSAI17-16A

Part No DSAI17-16A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description DIODE AVAL 1.6KV 25A DO203AA
Datasheet
DSAI17-16A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr IXYS
Package Bulk
Product Status Obsolete
Technology Avalanche
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.36 V @ 55 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 4 mA @ 1600 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA
Operating Temperature - Junction -40°C ~ 180°C
Base Product Number DSAI17
Standard Package 10 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 848220-DSAI17-16A
Ultra Librarian 3D Model Ultra Librarian DSAI17-16A CAD Model

Description

The DSAI17-16A is a rectifier diode designed for diode applications.

  • Diode Type: Standard Recovery
  • Voltage - DC Reverse (Vr) (Max): 1600V
  • Current - Average Rectified (Io): 25A
  • Voltage - Forward (Vf) (Max) @ If: 1.36V @ 55A
  • Temperature - Junction: -40°C ~ 180°C
  • Mounting Type: Chassis, Stud Mount
