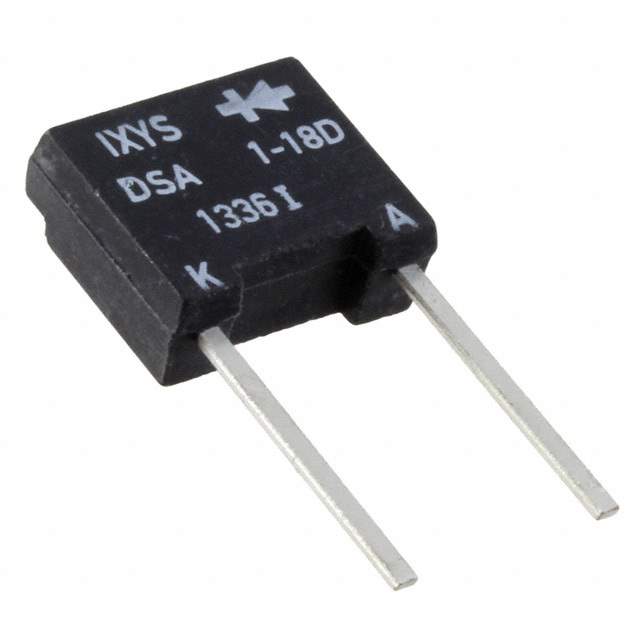

DSA1-18D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 40 Weeks
Features Diode Avalanche 1800 V 2.3A Through Hole -
Manufacturer IXYS
Package Bulk
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Through Hole
Package Radial
Family Name DSA1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number DSA1-18D-NDR, DSA118D, Q1254920
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869664-DSA1-18D
Ultra Librarian 3D Model Ultra Librarian DSA1-18D CAD Model

Description

The IXYS DSA1-18D is a through-hole diode avalanche that is commonly used in power supplies and rectifiers.

  • Voltage: 1800V
  • Current: 2.3A
  • Package Type: Bulk radial
  • Family: DSA1
  • Supply and Demand Status: Limited
  • Quantity per Package: 100
