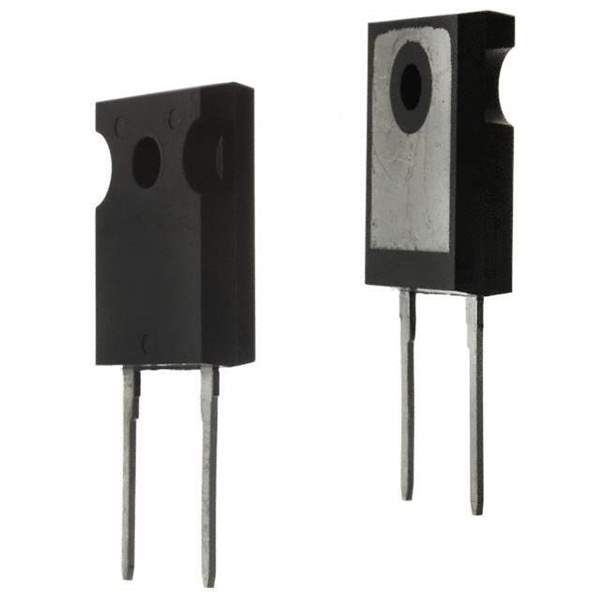

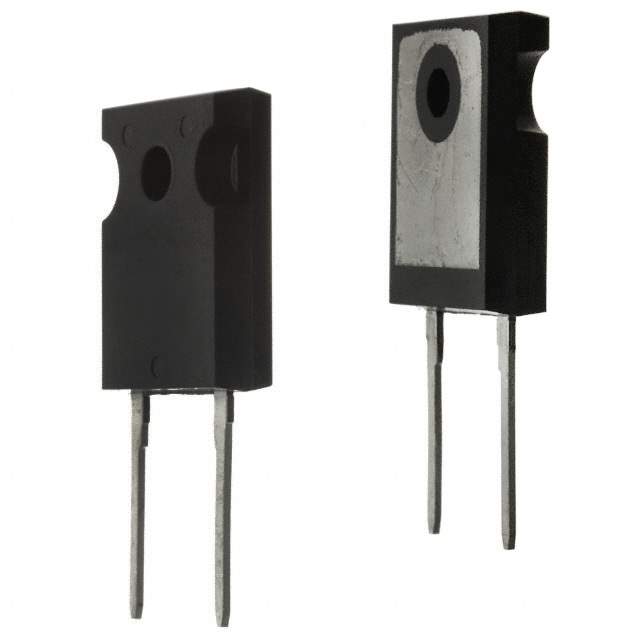

DH60-16A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr IXYS
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2.04 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 230 ns
Current - Reverse Leakage @ Vr 200 µA @ 1400 V
Capacitance @ Vr, F 32pF @ 1200V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number DH60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30
Win Source Part Number 1003429-DH60-16A
Ultra Librarian 3D Model Ultra Librarian DH60-16A CAD Model

Description

The DH60-16A is a fast recovery diode with a diode type of standard. DH60-16A is from IXYS.

  • Voltage-DC Reverse (Vr) (Max): 1600 V
  • Average Rectified Current (Io): 60A
  • Voltage-Forward (Vf) (Max) @ If: 2.04 V @ 60 A
  • Reverse Recovery Time (trr): 230 ns
  • Current-Reverse Leakage @ Vr: 200 µA @ 1400 V
  • Capacitance @ Vr, F: 32pF @ 1200V, 1MHz
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Mounting Type: Through hole
  • Package/Case: TO-247-2
  • Supplier Device Package: TO-247AD
  • Application: Diodes-rectifiers-single
