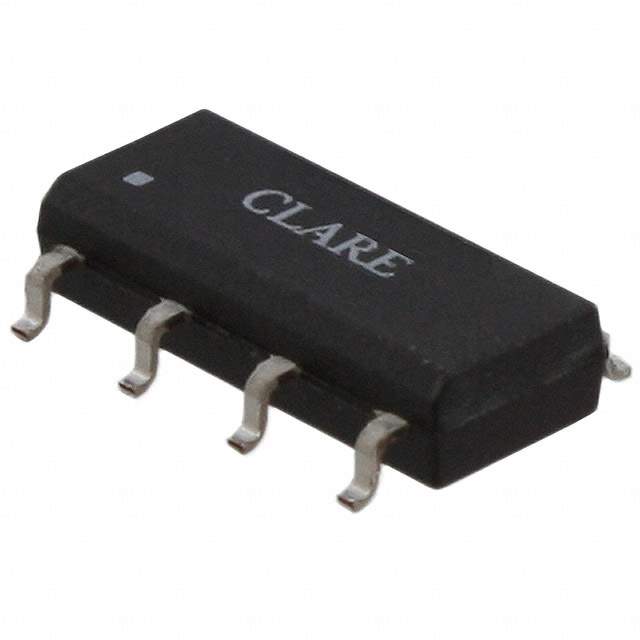

CPC2317N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 22 Weeks
Features Solid State SPST-NO + SPST-NC (1 Form A and B) 8-SOP (0.150", 3.81mm Width)
Manufacturer IXYS
Series CPC, OptoMOS®
Package Tube
Mounting Surface Mount
Package 8-SOP (0.150", 3.81mm Width)
Case / Package 8-SOIC
Family Name CPC2317
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867093-CPC2317N
Ultra Librarian 3D Model Ultra Librarian CPC2317N CAD Model

Description

The CPC2317N is a solid-state relay manufactured by IXYS.

  • Feature: Solid state SPST-NO + SPST-NC (1 Form A and B)
  • Package: 8-SOP (0.150", 3.81mm Width)
  • Family Name: CPC2317
  • Categories: Relays
  • Package: Tube
  • Mounting: Surface Mount
  • Supply and Demand Status: Limited
  • Quantity per Package: 50
  • MSL Level: 3 (168 hours)
  • Estimated Production Lead Time: 22 weeks
