Same model may have multiple batches, images only for reference.

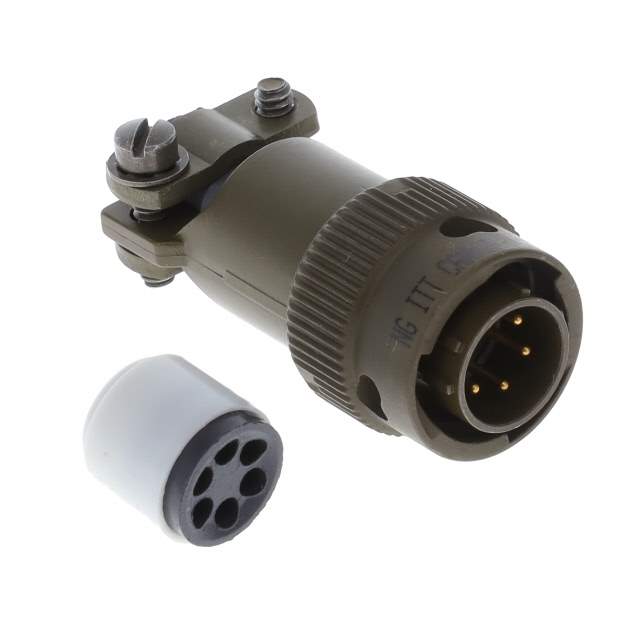

MS3116F10-6P Real Image
Same model may have multiple batches, images only for reference.

MS3116F10-6P

Part No MS3116F10-6P
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors
Description CONN PLUG 6POS STRAIGHT W/PINS / 6 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr ITT Cannon, LLC
Series KPT
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 10-6
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Olive Drab Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Resistant
Features Strain Relief
Current Rating (Amps) 7.5A
Voltage Rating 600VAC, 850VDC
Temperature Range - Operating -55°C ~ 125°C
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Base Product Number MS3116F10
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names Q9994185,Q10174832,MS3116F10-6PPEI,IMS3116F10-6P,MS3116F10-6PPEI-ND,MS3116F106P
Standard Package 1
Win Source Part Number 1220770-MS3116F10-6P
Ultra Librarian 3D Model Ultra Librarian MS3116F10-6P CAD Model

Description

The ITT Cannon, LLC 1220770-MS3116F10-6P is a circular connector from the KPT series.

  • Series: KPT
  • Type: Plug with Male Pins
  • Positions: 6
  • Termination: Solder Cup
  • Fastening: Bayonet Lock
  • Voltage Rating: 600VAC / 850VDC
  • Current Rating: 7.5A
  • RoHS Compliant: No
  • Shell Finish: Olive Drab Cadmium
  • Temperature Range: -55°C to 125°C
