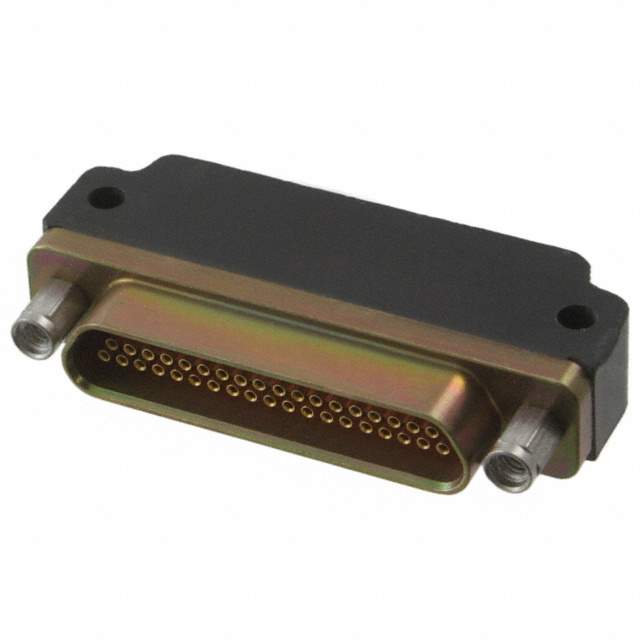

MDM-37SCBRP Real Image
Same model may have multiple batches, images only for reference.

MDM-37SCBRP

Part No MDM-37SCBRP
Manufacturer ITT Cannon, LLC
Catalog D - SUB, D - SHAPED connectors
Description Conn Micro D-Subminiature SKT 37 POS Solder RA Thru-Hole 37 Terminal 1 Port / CONN MICRO-D RCPT 37POS R/A SLDR
Datasheet
MDM-37SCBRP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer ITT Cannon, LLC
Series MIL-DTL-83513, Micro D Metal Shell (MDM)
Packaging Bulk
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Panel Mount, Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Features Shielded
Shell Material, Finish Aluminum, Yellow Chromate Cadmium Plated
Contact Finish Gold
Operating Temperature Range -55°C ~ 125°C
Current Rating 3A
Housing Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Win Source Part Number 788393-MDM-37SCBRP
Popularity Medium
Supply and Demand Status Limited
Family Name MDM
Introduction Date December 12, 2002
ECCN EAR99
Country of Origin Germany, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MDM-37SCBRP CAD Model

Description

The MDM series from ITT Cannon, LLC is a micro D metal shell connector.

  • Series: MIL-DTL-83513, MDM
  • Positions: 37
  • Connector Type: Receptacle with Female Sockets
  • Termination: Solder
  • Shielding: Yes
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Shell Material: Aluminum with Yellow Chromate Cadmium Plating
  • Contact Finish: Gold
  • Current Rating: 3A
  • Operating Temperature: -55°C to 125°C
  • Mounting: Panel Mount, Through Hole, Right Angle
