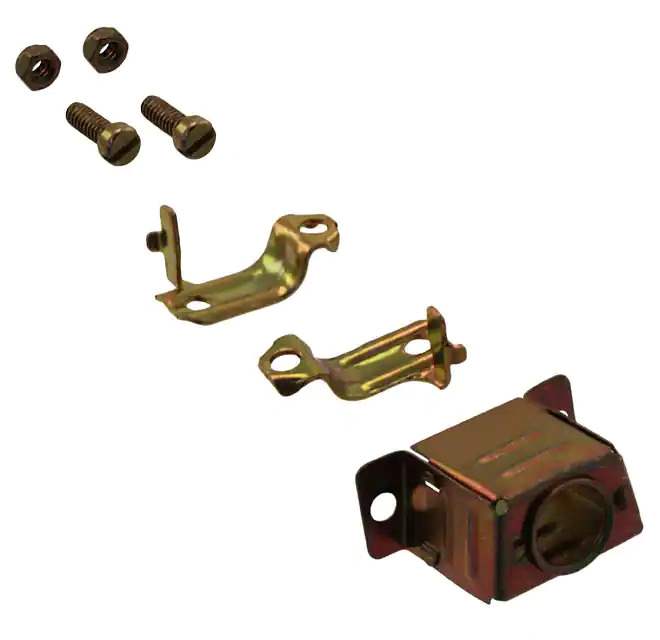

DE24657 Real Image
Same model may have multiple batches, images only for reference.

DE24657

Part No DE24657
Manufacturer ITT Cannon, LLC
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr ITT Cannon, LLC
Package Bag
Product Status Active
Accessory Type One Piece Backshell
Number of Positions 9
Cable Type Flat
Cable Exit 180°
Shielding Unshielded
Material Metal, Carbon Steel
Plating Yellow Chromate over Cadmium
Hardware Assembly Hardware, Cable Clamp
Base Product Number DE24
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 846928-DE24657
Ultra Librarian 3D Model Ultra Librarian DE24657 CAD Model

Description

The electronic component with the ID 788426 is a D-Sub connector backshell from ITT Cannon, LLC.

  • Positions: 9
  • Package: Bag
  • Quantity: 100 pieces
  • Cable Type: Flat
  • Shielding: Unshielded
  • Construction: One-Piece
  • Material: Metal, Carbon Steel
  • Plating: Yellow Chromate over Cadmium
  • Cable Exit: 180°
  • Features: Assembly Hardware, Cable Clamp
  • ECCN: EAR99
  • HTSUS Code: 8538.90.8180
  • Product Status: Active
