Same model may have multiple batches, images only for reference.

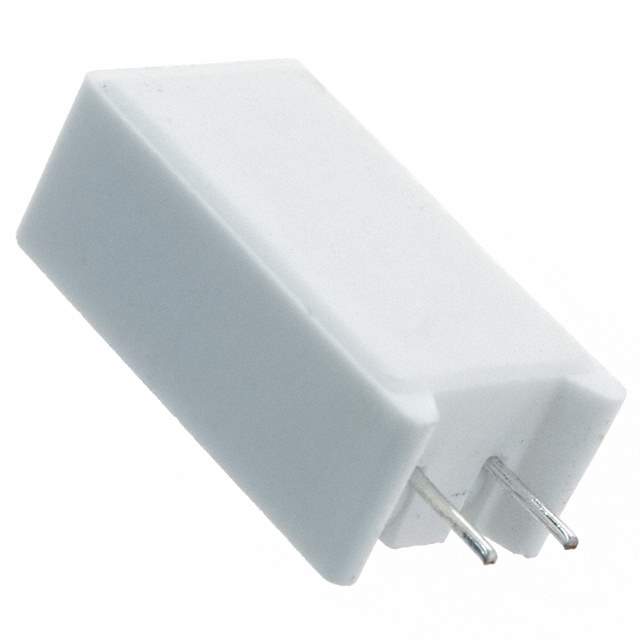

SQMW5R22J Real Image
Same model may have multiple batches, images only for reference.

SQMW5R22J

Part No SQMW5R22J
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 0.22 OHM 5% 5W RADIAL / 220 mOhms ±5% 5W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Manufacturer TE Connectivity Passive Product
Packaging Bulk
Resistance 220 mOhms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Case / Package Radial
Supplier Device Package Radial Lead
Size / Dimension 0.512" L x 0.354" W (13.00mm x 9.00mm)
Height - Seated (Max) 1.024" (26.00mm)
Number of Terminations 2
Base Product Number SQMW5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Part Number 2-1623788-5,A103692,2-1623788-5-ND,216237885
Standard Package 500
Win Source Part Number 1325880-SQMW5R22J
Ultra Librarian 3D Model Ultra Librarian SQMW5R22J CAD Model

Description

The TE Connectivity Passive Product's SQMW5R22J is a through-hole resistor that features flame proof, moisture resistant, and safety.

  • Size/Dimension: 0.512" L x 0.354" W (13.00mm x 9.00mm)
  • Resistance: 220 mOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±300ppm/°C
  • Power: 5W
  • Composition: Wirewound material
