Same model may have multiple batches, images only for reference.

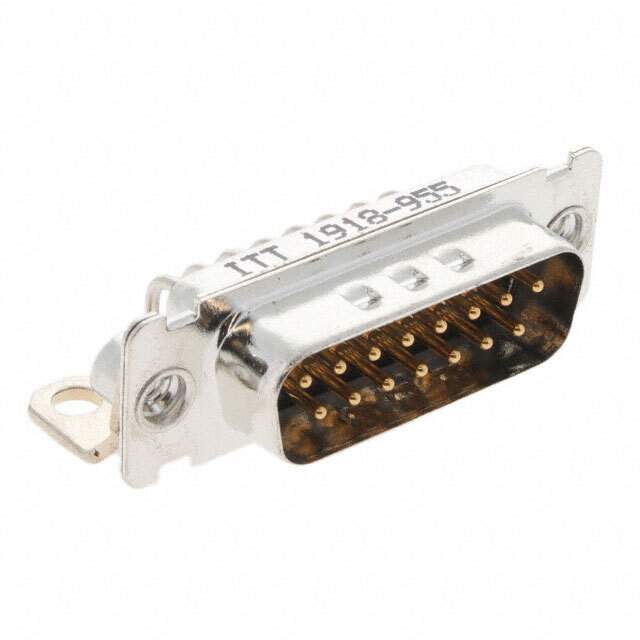

DAMP15PJK87 Real Image
Same model may have multiple batches, images only for reference.

DAMP15PJK87

Part No DAMP15PJK87
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 15POS R/A SLDR  /  15 Position D-Sub Plug, Male Pins Connector
Datasheet
DAMP15PJK87 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr ITT Cannon, LLC
Series D*M
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Other Names 535122452,DAMP-15P-J-K87,IDAMP15PJK87-ND,DAMP-15P-J-K87-ND,1003-2999,IDAMP15PJK87,053512-2452
Standard Package 1
Win Source Part Number 995767-DAMP15PJK87
Ultra Librarian 3D Model Ultra Librarian DAMP15PJK87 CAD Model

Description

The D*M series D-Sub connector from ITT Cannon, LLC is a high-quality product that is designed to meet the needs of various industrial applications.

  • Number of Positions: 15
  • Color: Black
  • Connector Type: Plug, Male Pins
  • Termination: Solder
  • Materials: Copper Alloy and Steel
  • Ingress Protection: IP67
