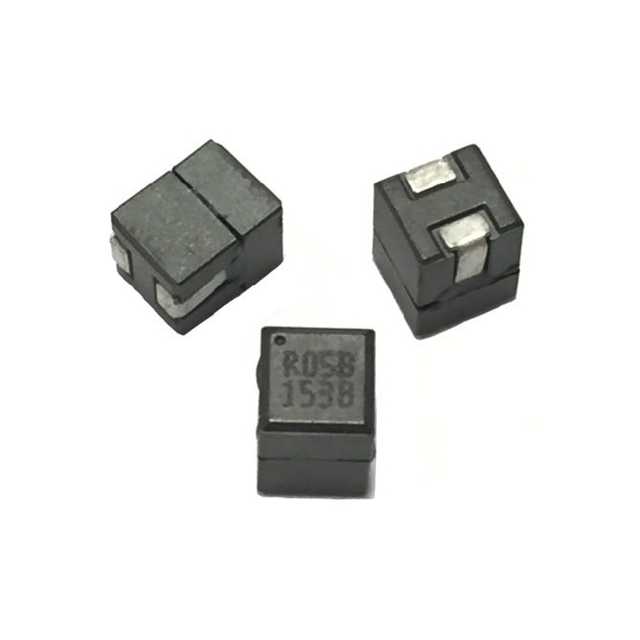

Same model may have multiple batches, images only for reference.

AH2026A-R05LHF

Name: AH2026A-R05LHF
Brand: ITG Electronics, Inc.
SKU: 1339417
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AH2026A-R05LHF
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	FIXED IND 50NH 53A 0.27 MOHM SMD / 50 nH Shielded Inductor 53 A 0.27mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	ITG Electronics, Inc.
Series	AH2026
Package	Tape & Reel
Material - Core	Ferrite
Inductance	50 nH
Tolerance	±15%
Current Rating (Amps)	53 A
Shielding	Shielded
DC Resistance (DCR)	0.27mOhm
Temperature Range - Operating	-55°C ~ 130°C
Inductance Frequency - Test	500 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Max)	0.260" (6.60mm)
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4050
Win Source Part Number	1339417-AH2026A-R05LHF
Ultra Librarian 3D Model	Ultra Librarian AH2026A-R05LHF CAD Model

Alternative Products

Description

The ITG Electronics Inc. AH2026A is a fixed inductor designed for use in inductor, coil, and choke applications.

Series: AH2026
Shielded: Yes
Size Dimension: 0.205" L x 0.197" W (5.20mm x 5.00mm)
Inductance: 50 nH
DC Resistance (DCR): 0.27mOhm
Current Rating: 53A
Packaging: Tape and Reel
Standard Package: 100
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 130°C
ROHS3 Compliant: Yes
ECCN: EAR99
