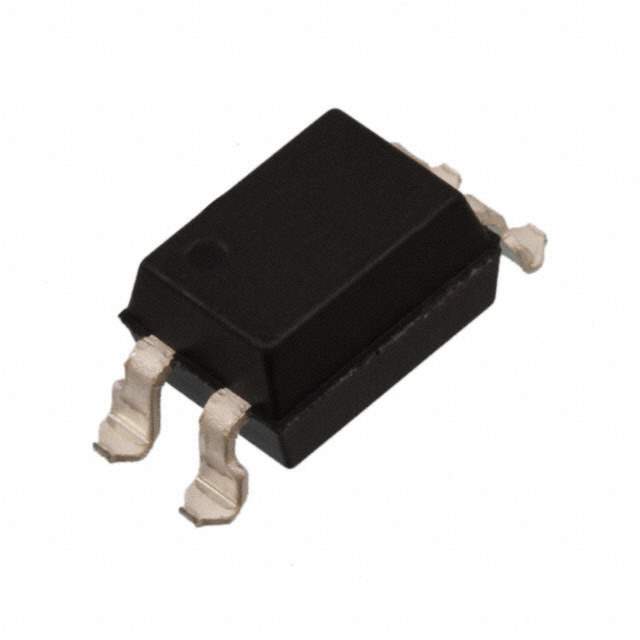

SFH615A-4XSM Real Image
Same model may have multiple batches, images only for reference.

SFH615A-4XSM

Part No SFH615A-4XSM
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5.3KV TRANS 4SMD  /  Optoisolator Transistor Output 5300Vrms 1 Channel
Datasheet
SFH615A-4XSM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Isocom Components 2004 LTD
Package Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 160% @ 10mA
Current Transfer Ratio (Max) 320% @ 10mA
Turn On / Turn Off Time (Typ) 6µs, 25µs
Rise / Fall Time (Typ) 4.6µs, 15µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.65V (Max)
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -30°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Base Product Number SFH615
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 2,000
Win Source Part Number 974634-SFH615A-4XSM
Ultra Librarian 3D Model Ultra Librarian SFH615A-4XSM CAD Model

Description

The SFH615A-4XSM is an optoisolator transistor output from Isocom Components 2004 LTD.

  • Channel Insulation: 5300Vrms
  • Package: 4-SMD, Gull Wing
  • Mounting Type: SMD (SMT)
  • Input Type: DC
  • Output Type: Transistor
  • Maximum DC Forward Current: 50mA
  • Typical Forward Voltage: 1.65V
  • Rise/Fall Time: 4.6μs/15μs
  • Maximum Output Voltage: 70V
  • Current Transfer Ratio: 160% @ 10mA
  • Maximum Current Transfer Ratio: 320% @ 10mA
