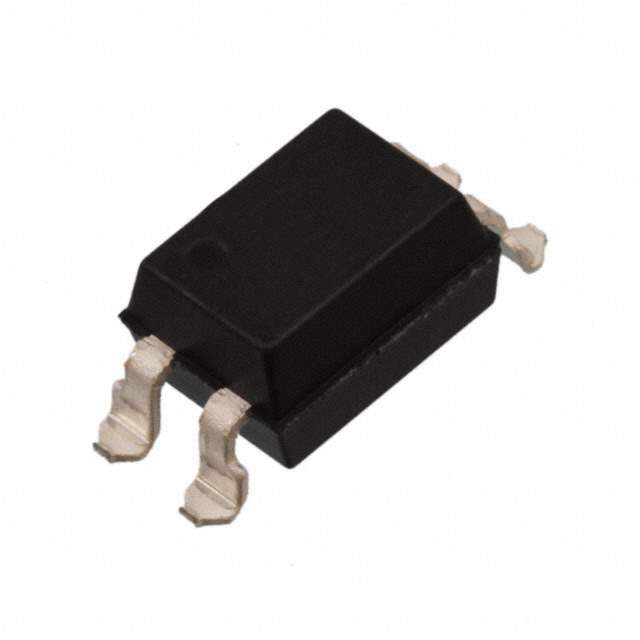

The SFH615A-2XSM is an optoisolator transistor with a photovoltaic output.

• Component: SFH615A-2XSM
• Type: optoisolator transistor with a photovoltaic output
• Standard Package: 2,000
• Mounting: SMD (SMT)
• Input Type: DC
• Maximum DC Forward Current: 50mA
• Voltage Forward: 1.65V (Max)
• Rise/Fall Time: 3μs, 14μs
• Current Output/Channel: 50mA
• Number of Channels: 1
• Voltage Isolation: 5300Vrms
• Current Transfer Ratio (Min): 63% @ 10mA
• Voltage Output (Max): 70V
• Vce Saturation (Max): 400mV
• Current Transfer Ratio (Max): 125% @ 10mA
• Turn On/Turn Off Time (Typ): 4.2μs, 23μs
• Package/Case: 4-SMD, gull-wing
• Temperature Range for Operation: -30°C to 100°C
