Same model may have multiple batches, images only for reference.

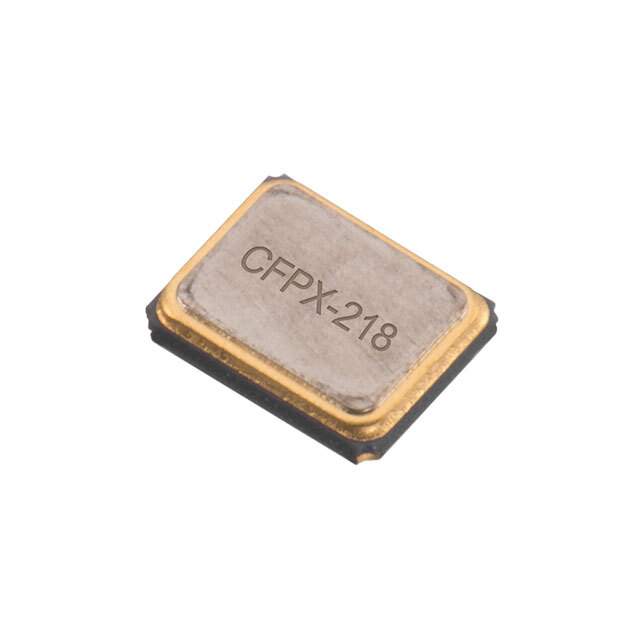

LFXTAL063334REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL063334REEL

Part No LFXTAL063334REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 10PF SMD  /  25 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series CFPX-218
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names LFXTAL063334CUTT,1923-1348-6,830106333401,1923-1348-2,1923-1348-1
Standard Package 1,000
Win Source Part Number 1017607-LFXTAL063334REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL063334REEL CAD Model

Description

The IQD Frequency Products CFPX-218 series MHz crystal, part number 1017607-LFXTAL063334REEL, is a surface-mount device that operates @ a frequency of 25 MHz with a frequency tolerance of ±20ppm.

  • Frequency: 25 MHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • Equivalent Series Resistance: 100 Ohms
  • Operating Mode: Fundamental
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Temperature Range: -40°C to 85°C
  • Seated Height: 0.024" (0.60mm)
  • Package/Case: 4-SMD, No Lead
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
