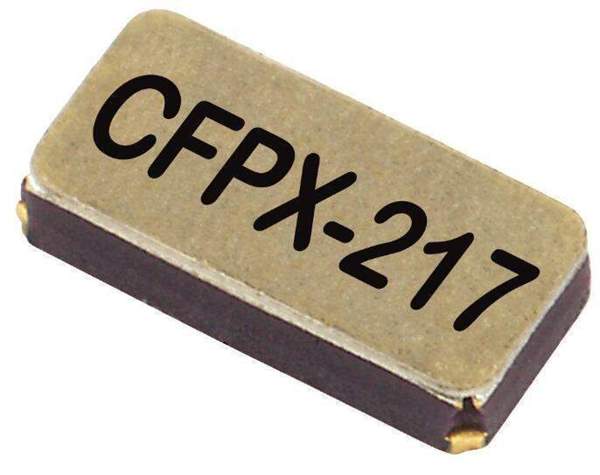

LFXTAL009678Reel IQD
Same model may have multiple batches, images only for reference.

LFXTAL009678REEL

Part No LFXTAL009678REEL
Manufacturer IQD Frequency Products Ltd
Catalog Crystals
Description Crystals 32.768kHz 20ppm SMD 12.5pF Alternate Part number: 449-LFXTAL009678
Datasheet
LFXTAL009678REEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IQD Frequency Products
Category Crystals
Frequency 32.768 kHz
Load Capacitance 12.5 pF
Tolerance 20 PPM
Package / Case 3.2 mm x 1.5 mm
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Termination Style SMD/SMT
ESR 80 kOhms
Drive Level 1 uW
Series CFPX-217
Ultra Librarian 3D Model Ultra Librarian LFXTAL009678REEL CAD Model

Description

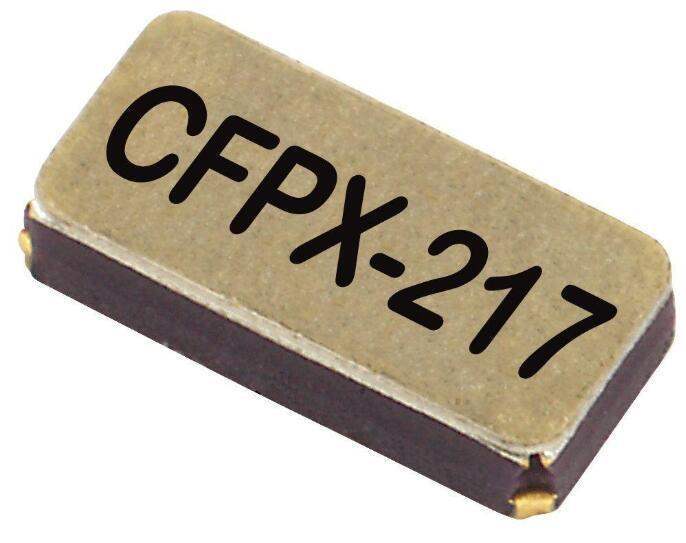

3.2 x 1.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed
