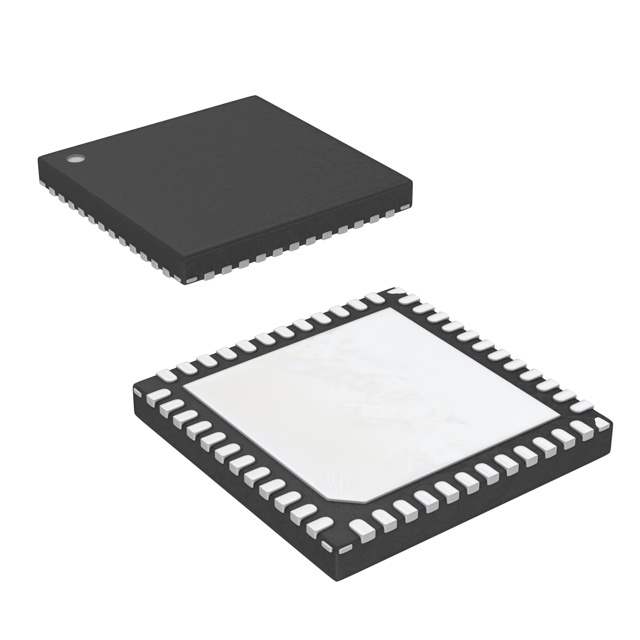

KAD5510P-21 Real Image
Same model may have multiple batches, images only for reference.

KAD5510P-21

Part No KAD5510P-21
Manufacturer Intersil
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 10BIT CMOS 210MSPS 48QFN
Datasheet
KAD5510P-21 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tray
Status Active
Number of Bits 10
Sampling Rate 210M
Number of Inputs 1
Input Type Differential
Data Interface LVDS - Parallel, Parallel
Configuration S/H-ADC
Number of A/D Converters 1
Reference Type Internal
Analog Supply Voltage 1.7 V to 1.9 V
Digital Supply Voltage 1.7 V to 1.9 V
Temperature Range - Operating -40°C to 85°C
Case / Package 48-QFN (7x7)
Win Source Part Number 040937-KAD5510P-21
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KAD5510P-21 CAD Model

Description

Intersil's KAD5510P-21 is a 10-bit, LVDS - Parallel, Parallel data interface, differential input type, S/H-ADC configuration integrated circuit.

  • Bits: 10-bit
  • Data Interface: LVDS - Parallel, Parallel
  • Input Type: differential
  • Configuration: S/H-ADC
  • Reference Type: internal
  • Case/Package: 48-QFN (7x7)
  • Supply and Demand Status: balance
