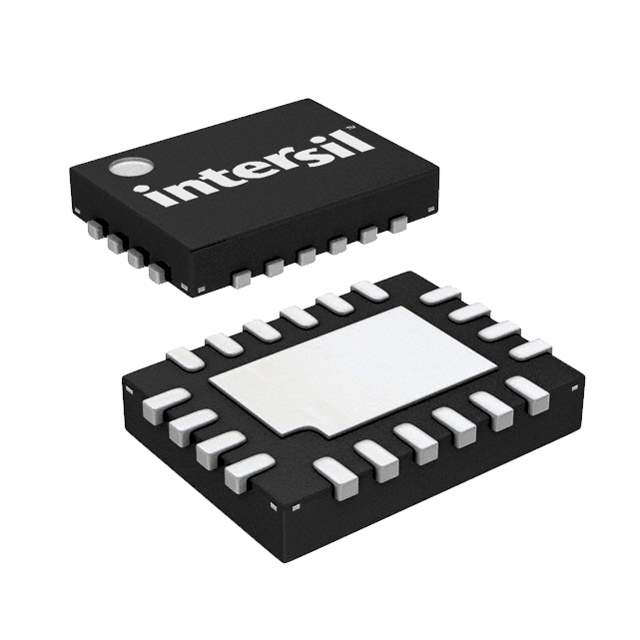

ISL97672BIRZ-T Real Image
Same model may have multiple batches, images only for reference.

ISL97672BIRZ-T

Part No ISL97672BIRZ-T
Manufacturer Intersil
Catalog Board Mount LED Drivers
Description IC LED DRVR RGLTR DIM 50MA 20QFN / LED Driver 78 Segment 5000uA Supply Current 20-Pin QFN EP T/R
Datasheet
ISL97672BIRZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intersil
Packaging Reel package
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Voltage Supply MIN 4.5V
Voltage Supply MAX 26.5V
Voltage - Output 45V
Output Current per Channel 50mA
Frequency 200kHz ~ 1.5MHz
Dimming PWM
Applications Backlight
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 20-VFQFN Exposed Pad
Manufacturer Package 20-QFN (3x4)
Win Source Part Number 777495-ISL97672BIRZ-T
Popularity Medium
Supply and Demand Status Limited
Family Name ISL97672B
Introduction Date June 13, 2012
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ISL97672BIRZ-T CAD Model

Description

The Intersil ISL97672BIRZ-T is a DC DC regulator that operates in a temperature range of -40°C to 85°C. Intersil

  • Voltage Output: 45V
  • Frequency: 200kHz - 1.5MHz
  • Internal Switch: Yes
  • Topology: Step-up (boost)
  • Number of Outputs: Six
  • Dimming Feature: PWM
  • Applications: Backlight
  • Package: 20-VFQFN exposed pad
  • Mounting Type: SMD
  • Series: ISL97672B
