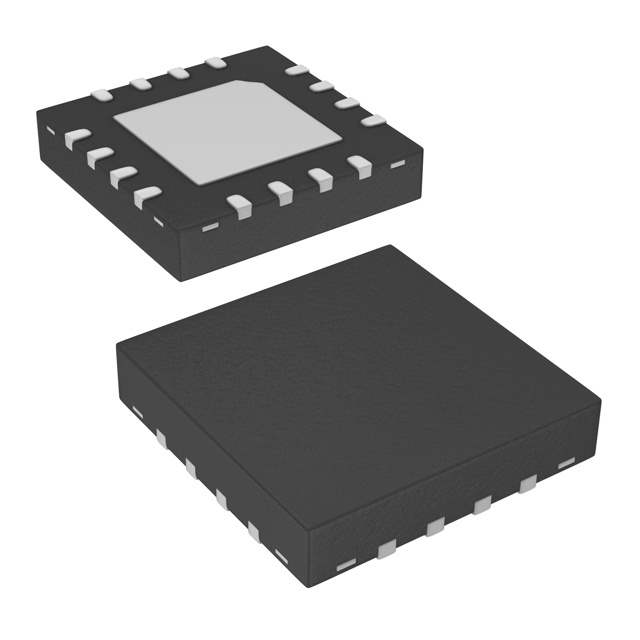

ISL6614BCRZ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 7 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 16-QFN (4x4)
Win Source Part Number 137828-ISL6614BCRZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6614BCRZ CAD Model

Description

The Intersil ISL6614BCRZ is a half-bridge synchronous channel type integrated circuit that is part of the ISL6614BCRZ family.

  • Input Type: Non-inverting
  • Drivers: Four
  • Gate Type: N-channel MOSFET
  • High Side Voltage: 36V (maximum)
  • Product Status: Obsolete
  • Supply and Demand Status: Limited
  • Operating Temperature Range: 0°C to 125°C
  • Package: 16-QFN (4x4)
  • Rise Time: 26ns
  • Fall Time: 18ns
