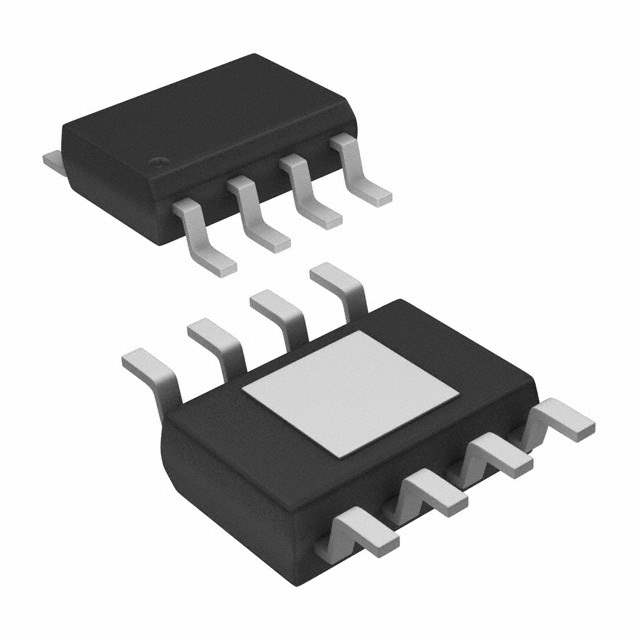

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC-EP
Win Source Part Number 123183-ISL6613ECBZ-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL6613ECBZ-T CAD Model

Description

The Intersil ISL6613ECBZ-T is an integrated circuit with a half-bridge driven configuration and 2 N-channel MOSFET gate drivers.

  • Mounting: SMD (SMT)
  • Package: 8-SOIC-EP
  • Channel Type: Synchronous
  • Input Type: Non-inverting
  • High Side Voltage: 36V
  • Peak Output Current (Source): 1.25A
  • Peak Output Current (Sink): 2A
  • Rise Time: 26ns
  • Fall Time: 18ns
