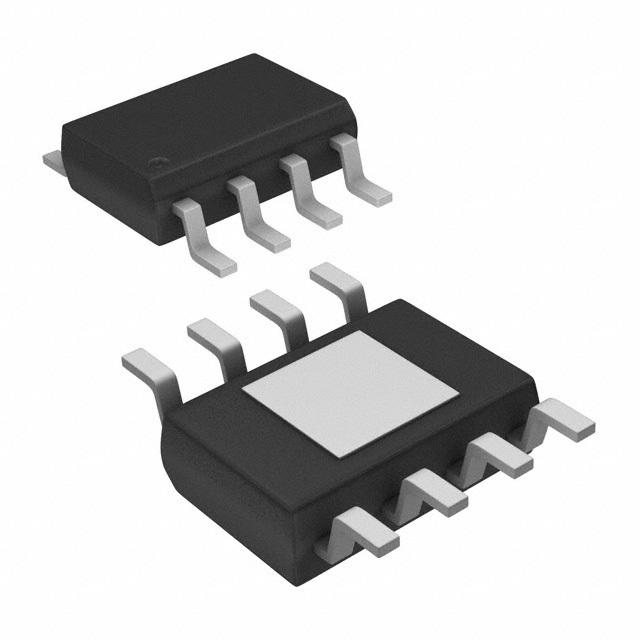

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC-EP
Win Source Part Number 127161-ISL6613ECB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6613ECB CAD Model

Description

The Intersil ISL6613ECB is a half-bridge synchronous channel type driver with N-channel MOSFET gate type.

  • Number of Drivers: Two
  • Input Type: Non-inverting
  • Status: Obsolete (EOL)
  • Operating Temperature Range: 0°C to 125°C (TJ)
  • Package: 8-SOIC-EP case/package
  • Supply Voltage Range: 10.8 V to 13.2 V
  • Rise Time: 26ns
  • Fall Time: 18ns
