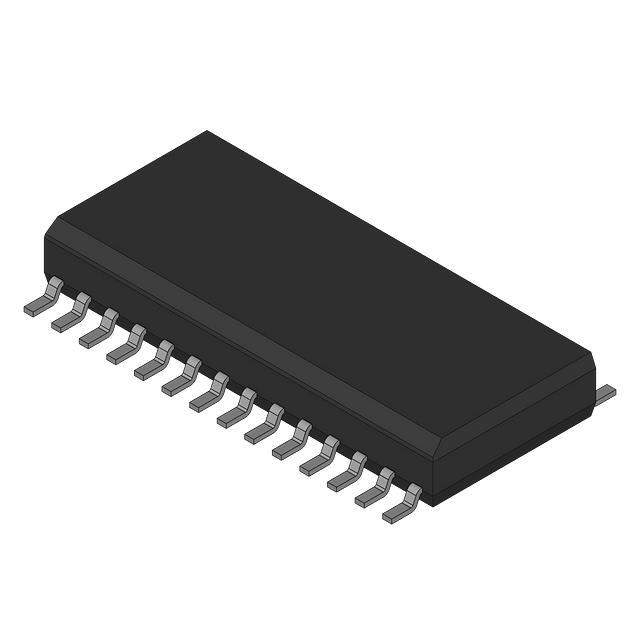

AUIRS2336STR

Name: AUIRS2336STR
Brand: Infineon Technologies
SKU: 769359
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AUIRS2336STR
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRIVER HV 3PHASE 28SOIC / Driver 600V 0.35A 6-OUT High and Low Side 3-Phase Brdg Inv Automotive 28-Pin SOIC W T/R
Datasheet	AUIRS2336STR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q100
Packaging	Reel package
Driven Configuration	Half-Bridge
Channel Type	3-Phase
Number of Drivers	6
Gate Type	IGBT, N-Channel, P-Channel MOSFET
Operating Supply Voltage	10 V ~ 20 V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	200mA, 350mA
High Side Voltage - Max (Bootstrap)	600V
Rise / Fall Time (Typ)	125ns, 50ns
Operating Temperature Range	-40°C ~ 150°C (TJ)
Mounting	SMD
Package	28-SOIC (0.295", 7.50mm Width)
Manufacturer Package	28-SOIC
Win Source Part Number	769359-AUIRS2336STR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	AUIRS2336
Introduction Date	July 08, 2010
ECCN	EAR99
Country of Origin	Malaysia
Estimated EOL Date	2023
Ultra Librarian 3D Model	Ultra Librarian AUIRS2336STR CAD Model

Alternative Products

Description

Infineon Technologies presents the AUIRS2336STR integrated circuit, which is a 3-phase channel type half-bridge driven configuration with six drivers.

Gate types: IGBT, N-Channel, and P-Channel MOSFET
Logic voltage: 0.8V to 2.5V
Current peak output: 200mA and 350mA
High side voltage: 600V
Package: 28-SOIC
Operating temperature range: -40°C to 150°C
Popularity: medium
